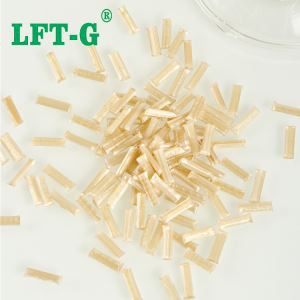

50% Long Glass Fiber Reinforced PPS (LFT-G®-PPS-LGF50-NG05)
Engineered for ultimate rigidity and precision, LFT-G®-PPS-LGF50-NG05 represents the pinnacle of performance for structural components in extreme environments. With a 50% long glass fiber reinforcement, this Polyphenylene Sulfide (PPS) composite offers near-metal stiffness, exceptional dimensional stability, and the broad chemical resistance PPS is known for. It is the definitive material choice when deflection is not an option. In short, this page details an engineering solution born for ultimate rigidity and precision (LFT-G®-PPS-LGF50-NG05) - blending the peak stiffness of 50% long fiber with the unparalleled chemical resistance and dimensional stability of PPS to solve the most demanding precision engineering challenges.
People Also Ask:
What is PPS GF50?
It's an ultra-stiff, high-performance composite with a PPS matrix and 50% glass fiber, designed for structural auto parts and industrial pump parts that require metal-like rigidity and chemical resistance.
What is the stiffness of PPS GF50?
With a tensile modulus often exceeding 17,000 MPa, LFT-G PPS GF50 is one of the stiffest injection-moldable thermoplastics available, approaching the rigidity of some aluminum alloys while being significantly lighter.
Is PPS suitable for precision components?
Absolutely. Due to its extremely low moisture absorption, low coefficient of thermal expansion (CLTE), and high stiffness, PPS maintains its shape and tolerances exceptionally well, making it ideal for precision parts in demanding environments.
Visualizing Rigidity: Deflection Under Load
The true measure of a structural material is its ability to resist bending under load. This visualization shows how LFT-G-PPS-LGF50 maintains near-metal rigidity.
Case Study: Precision Sensor Housing
The Challenge
A manufacturer of high-precision scientific instruments required a housing for a new laser measurement sensor. The housing had to maintain absolute dimensional stability across a wide operating temperature range (-40°C to 150°C) to ensure the laser's alignment was never compromised. The material also needed to be immune to various cleaning solvents. The initial design using a machined aluminum block was accurate but prohibitively expensive and heavy for a portable device.
The Solution: LFT-G-PPS-LGF50-NG05
Our ultra-stiff PPS composite was the perfect fit. Its extremely high modulus (17,000 MPa) and very low Coefficient of Linear Thermal Expansion (CLTE) ensured the housing remained dimensionally stable, protecting the sensitive optics. The material's near-zero moisture absorption and broad chemical resistance meant performance was consistent regardless of humidity or exposure to solvents. We were able to injection mold the part with all its complex internal features in a single step, eliminating all machining.
Result: A 65% lighter sensor housing that maintained sub-micron alignment accuracy across all tests, with a 70% reduction in total part cost.
Technical Specifications (Grade: LFT-G-PPS-LGF50-NG05)
| Property | Test Method | Value |
|---|---|---|
| Density | ISO 1183 | 1.68 g/cm³ |
| Tensile Modulus | ISO 527 | 17,300 MPa |
| Tensile Strength | ISO 527 | 208 MPa |
| Notched Izod Impact (23°C) | ISO 180 | 48 kJ/m² |
| Heat Deflection Temp (1.8 MPa) | ISO 75 | 266 °C |
| Flame Retardancy (1.5mm) | UL94 | V-0 (Inherent) |
| Water Absorption (24hr) | ISO 62 | < 0.05% |
Download Complete LFT PPS GF50 Data Sheet PDF
Technical Spotlights: Applications for Ultimate Rigidity
Downhole Oil & Gas Components
Engineering Challenge: Extreme pressures, high temperatures (>200°C), and exposure to sour gas and corrosive drilling fluids.
- Critical Properties: ✓ Extreme Chemical Resistance, ✓ High Creep Resistance, ✓ High-Temperature Stability.
- The LFT-G®-PPS-LGF50 Solution: Provides the strength and chemical immunity to replace exotic metals like Monel or titanium in components like sensor housings, valve bodies, and seals, at a much lower cost and weight.
Automotive Transmission & Drivetrain
Engineering Challenge: Complex components must maintain precise tolerances while immersed in hot transmission fluids and subjected to constant vibration.
- Required Properties: ✓ High Modulus at Temp, ✓ Low Moisture Absorption, ✓ Fatigue Resistance.
- The LFT-G-PPS-LGF50 Solution: Ideal for check balls, thrust washers, and structural components within transmissions. Its dimensional stability ensures consistent performance and shifting, leading to improved vehicle reliability and longevity.
Engineer for Precision, Rely on Rigidity
When your design tolerates no errors and no deflection, you need a material built to the same standard. Utilize the ultimate stiffness of LFT-G-PPS-LGF50 to create components with unwavering precision and reliability. Contact our team to begin your most demanding project.
