40% Long Glass Fiber Reinforced PPS (LFT-PPS-LGF40-NG04) For Water Pump Part
Engineered for structural integrity in extreme conditions, LFT-PPS-LGF40-NG04 delivers the ultimate combination of high mechanical strength, extreme chemical resistance, and high-temperature performance. With a 40% long glass fiber reinforcement, this Polyphenylene Sulfide (PPS) composite is designed to directly replace specialty metals like stainless steel in the most demanding applications. In short, this page details an engineering solution born to replace metal in the harshest environments (LFT-PPS-LGF40-NG04) - blending the peak structural strength of 40% long fiber with the unparalleled chemical and thermal resistance of PPS to solve the toughest engineering challenges.
People Also Ask:
What is PPS GF40?
It is a high-stiffness, high-strength composite with a PPS matrix and 40% glass fiber. Our long-fiber version enhances this with superior toughness, making it a robust material for structural auto parts and industrial pump parts.
How strong is PPS GF40?
With a tensile strength often exceeding 190 MPa, it is one of the strongest thermoplastics available. Its strength, especially at high temperatures, makes it a viable alternative to metals like aluminum and steel in many applications.
What can replace stainless steel?
For applications requiring high chemical and corrosion resistance, LFT PPS GF40 is an excellent replacement for stainless steel. It offers comparable resistance to a broad range of chemicals at a fraction of the weight and with significantly lower manufacturing costs.
Metal Replacement Scorecard: LFT-PPS-LGF40 vs. Stainless Steel
| Decision Criterion | LFT-PPS-LGF40-NG04 | Stainless Steel (304) | Winner |
|---|---|---|---|
| Specific Strength (Strength-to-Weight) | Excellent | Good | LFT-PPS-LGF40 |
| Chemical Resistance (Acids/Bases) | Excellent | Excellent | Tie |
| Manufacturing Cost & Complexity | Low (Single Step Molding) | High (Multi-Step Machining) | LFT-PPS-LGF40 |
| Corrosion / Rust Resistance | Immune | Resistant (Can pit) | LFT-PPS-LGF40 |
| Design Freedom (Complex Geometries) | High | Low | LFT-PPS-LGF40 |

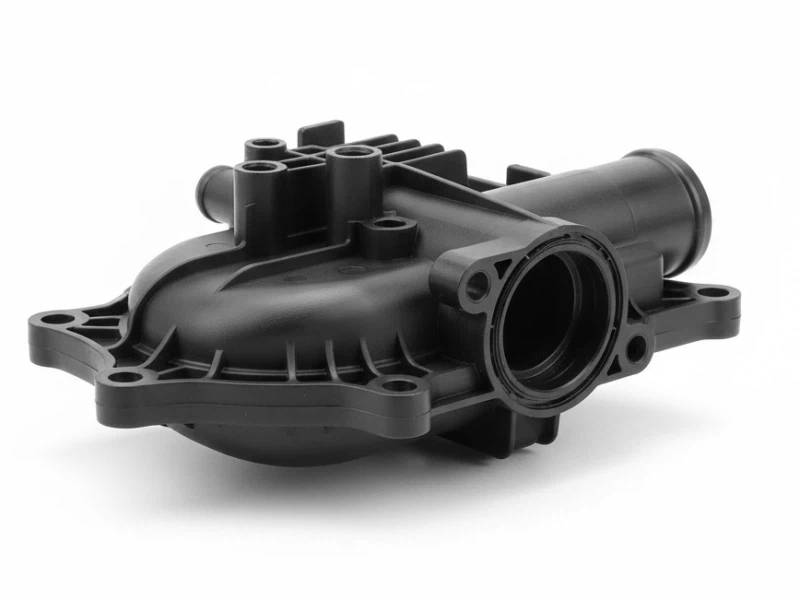

Case Study: Automotive EGR Valve Housing
The Challenge
An automotive Tier-1 supplier needed a material for an Exhaust Gas Recirculation (EGR) valve housing. This component is exposed to one of the harshest environments in a vehicle: continuous high temperatures up to 200°C, and constant exposure to acidic exhaust gases, unburnt fuel, and engine oil. The traditional solution was a costly, heavy, die-cast aluminum part which required significant machining.
The Solution: LFT-PPS-LGF40-NG04
Our PPS long-fiber composite was the only thermoplastic capable of surviving this environment. Its PPS matrix provided complete immunity to the corrosive chemical cocktail, while the 40% long glass fiber reinforcement delivered the high stiffness and creep resistance needed to maintain tight seals and dimensional stability at extreme temperatures. The material's low moisture absorption also ensured consistent performance regardless of humidity.
Result: A 50% lighter EGR housing that passed all thermal shock and chemical exposure tests, enabling a 30% reduction in total part cost and improving overall engine efficiency.
Technical Specifications (Grade: LFT-PPS-LGF40-NG04)
| Property | Test Method | Value |
|---|---|---|
| Density | ISO 1183 | 1.54 g/cm³ |
| Tensile Modulus | ISO 527 | 13,500 MPa |
| Tensile Strength | ISO 527 | 190 MPa |
| Notched Izod Impact (23°C) | ISO 180 | 52 kJ/m² |
| Heat Deflection Temp (1.8 MPa) | ISO 75 | 266 °C |
| Flame Retardancy (1.5mm) | UL94 | V-0 (Inherent) |
| Water Absorption (24hr) | ISO 62 | < 0.05% |
Download Complete LFT PPS GF40% Data Sheet PDF
Anatomy of a High-Performance Industrial Pump
1. Pump Housings & Bodies
Replaces stainless steel, offering identical chemical resistance with a 75% weight reduction and the ability to mold complex geometries in a single step.
2. Impellers & Vanes
High stiffness and creep resistance prevent deformation under high pressure and flow, ensuring consistent pump performance and efficiency over time.
3. Flanges & Connectors
Near-zero moisture absorption and low thermal expansion guarantee dimensional stability, ensuring leak-proof seals across a wide temperature range.
Engineer for the Impossible
When your application faces conditions that would destroy ordinary plastics, it's time for an extraordinary solution. Leverage the power of LFT-PPS-LGF40 to solve your most extreme thermal and chemical challenges.
