Fiber Orientation in LFT Parts: Why Flow Direction Determines Strength
A common mistake among engineers new to LFT is treating it like a uniform material. They look at the tensile strength on the data sheet - say, 150 MPa - and assume the entire part will deliver that number in every direction.
This is a dangerous assumption. LFT parts are not isotropic. The long fibers align with the direction of melt flow during injection molding, and this orientation-determined largely by the mold design -creates a part that is exceptionally strong in one direction and significantly weaker in another.
The gap can be as large as 30–40% between the flow direction and the transverse direction. And that gap is determined not by the material, but by how the part is designed.
What Happens to Fibers During Injection Molding

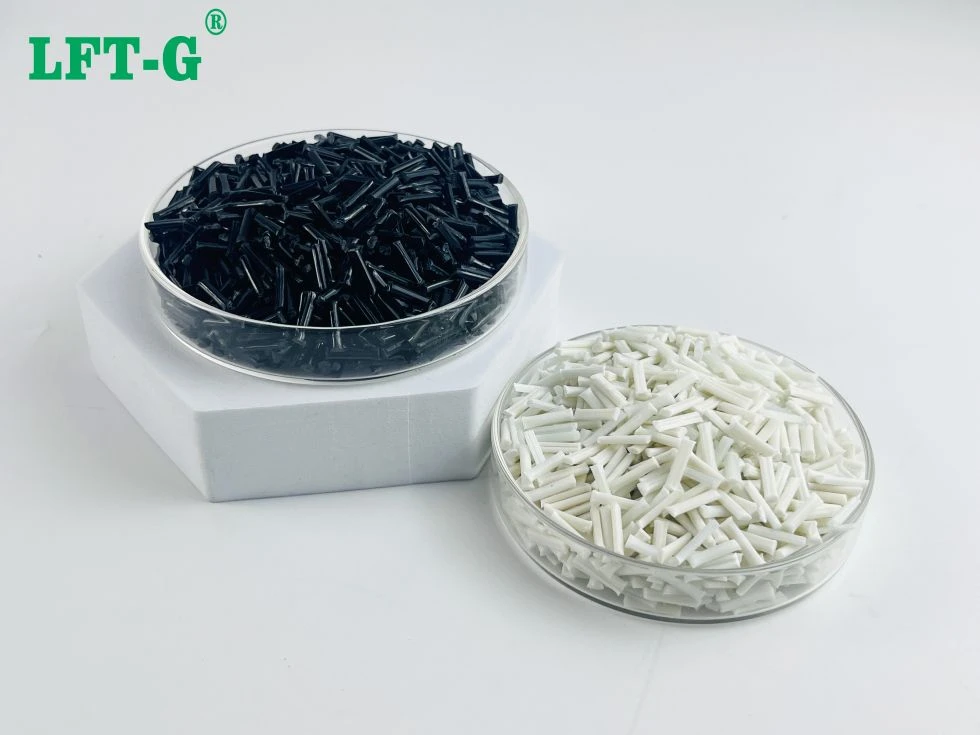

When LFT pellets melt and flow through the nozzle, runner, and gate, the molten polymer carries the fibers with it. As the melt enters the cavity, it moves like a series of layered flow fronts. Fibers align with the direction of this flow-typically along the longest dimension of the part.
Near the mold surface, flow velocity is high and fibers align strongly with the flow direction. In the core, flow is slower and fiber orientation is more random. This creates a characteristic skin-core structure common to all injection-molded LFT parts.
The result is a part that is highly anisotropic - its mechanical properties depend on which direction you test it.
The key insight: A material data sheet always reports properties measured in the flow direction. But your part will carry loads from multiple directions. If you don't account for fiber orientation, the real-world strength of your part could be 30–40% lower than the published data.
The Performance Gap: Flow Direction vs. Transverse Direction
The difference in performance between the flow and transverse directions is significant and measurable:
| Property | Flow Direction | Transverse Direction | Loss |
|---|---|---|---|
| Tensile Strength | 100% (baseline) | 60–70% of flow direction | 30–40% |
| Flexural Modulus | 100% (baseline) | 70–80% of flow direction | 20–30% |
| Impact Strength | 100% (baseline) | 50–60% of flow direction | 40–50% |
The impact strength loss is most dramatic - nearly half the energy absorption capacity is lost in the transverse direction. For parts that must withstand impact from multiple angles, this is a critical design consideration.
What Determines Fiber Orientation in Your Part?
Three design variables have the greatest influence on final fiber orientation:
1. Gate Location
Gate placement is the single most important factor affecting fiber orientation. Fibers flow away from the gate along the path of least resistance. If the gate is at one end of a long part, fibers will align along the part's length. If the gate is in the center, fibers will radiate outward, creating a more balanced orientation overall.
2. Wall Thickness
Thinner walls create higher shear rates during filling, which aligns fibers more strongly with the flow direction. Thicker walls allow more random orientation in the core. This means:
- Thin-walled parts are stronger in the flow direction but weaker transversely
- Thick-walled parts are less anisotropic but sacrifice some peak strength
3. Flow Path
Complex flow paths - with turns, ribs, and bosses - create complex fiber orientation patterns. Fibers tend to align with each flow front, which means they may reorient multiple times as they travel through the mold. Predicting the final orientation in complex parts requires mold flow simulation, not intuition.
Design Principles: How to Use Fiber Orientation to Your Advantage
Understanding fiber orientation is not just about avoiding weaknesses - it's about designing to exploit the material's strengths.
Principle 1: Align the flow direction with the primary load direction
Identify the primary load path in your part and place the gate so that the melt flows along that path. This ensures that the highest strength is in the direction that matters most.
Principle 2: Use simulation early
Mold flow simulation is not optional for LFT parts. It provides a predictive map of fiber orientation before steel is cut. Use it to evaluate different gate locations and flow paths, and optimize the design before committing to tooling.
Principle 3: When loads are multi-directional, consider multi-gating
For parts that experience loads from multiple directions, multiple gates can create a more balanced orientation pattern. This is especially relevant for automotive structural parts that must perform under complex loading conditions.
Principle 4: Don't rely on the data sheet alone
The data sheet's tensile strength is a material property - not a part property. The final part will only achieve that strength in the flow direction, and only if the design preserves it. Test actual molded parts in the directions they will be loaded in service.
Design principle to remember: The material data sheet tells you what the resin can do. The mold design tells you what your part actually will do.
How LFT-G® Can Help
Designing LFT parts for optimal fiber orientation is a complex task - but you don't have to do it alone.
LFT-G® offers engineering support that goes beyond material supply:
- Mold flow simulation support - we help you evaluate gate location, flow paths, and orientation patterns before tooling begins
- Material selection guidance - choosing the right LFT grade for your specific application and loading conditions
- Part design review - we review your design to identify potential orientation-related weaknesses and suggest improvements
With over 20 years of LFT experience, LFT-G® doesn't just sell materials - we help engineers get the most out of them.
