High Impact LGF PBT Compound Resin

In the wave of light weighting in engineering plastics, mere "strengthening" is no longer sufficient to meet the demands of modern industries for extreme environments and structural strength. LGF PBT (Long Glass Fiber Reinforced Polybutylene Terephthalate) emerged as a revolutionary material under this circumstance.
It does not merely add glass fibers to the resin; instead, through a special melt impregnation process, it constructs a "polymer framework" that can replace metals.

What is LGF PBT?

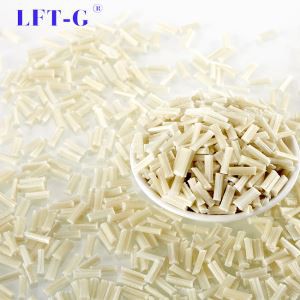

LGF PBT is a type of LFT (Long Fiber Thermoplastic). Unlike the traditional short glass fiber (SGF) PBT, the particle length of LGF PBT compound resin is usually between 5 mm and 25 mm, and the glass fibers within the particles are of the same length as the particles, and they are arranged in a single-directional parallel manner within the resin matrix. This particular form results in a significantly greater average retention length of the fibers within the molded part compared to short glass fiber materials (typically, the fiber length after SGF molding is less than 0.5 mm, while for LGF it can reach 1-3 mm or even longer).

GF PBT: Microcosmic Horizon

To truly understand the strength of LGF PBT, one must delve into the microscopic level.
Skeleton Network Effect
Short Glass Fiber (SGF): Microscopically, it looks like a bunch of scattered toothpicks floating in a resin sea. Under stress, the stress is mainly transferred through the resin, and the fibers are prone to being pulled out.
Long Glass Fiber (LGF): During injection molding, the long fibers bend, interlace, and intertwine with each other, creating a three-dimensional skeleton structure similar to a "bird's nest". This structure can still maintain the physical shape of the part even when the base resin softens at high temperatures.

Interface bonding and stress transfer
Through the use of special coupling agents and impregnation processes, PBT resin can fully penetrate each glass fiber filament. When subjected to external force impact, the stress rapidly disperses along the long fiber framework throughout the entire component, rather than concentrating at a single point. This is the microscopic reason why the impact resistance of LGF PBT far exceeds that of SGF PBT material.

The performance potential of LGF PBT Composite

Performance dimension	Characteristics of performance	Analysis of Advantages
High impact resistance	The notch impact strength is typically several times that of short glass fiber PBT of the same proportion.	Even in extremely low temperatures, it still maintains extremely high toughness and is not prone to cracking.
Creep resistance	Under a long-term constant load, the deformation is minimal.	The fibrous framework resists the viscoelastic flow of the polymer, making it suitable for use as a structural component.
Fatigue resistance	The number of times subjected to alternating stress has significantly increased.	Effectively inhibit the expansion of microcracks, resulting in a longer service life.
Dimensional stability	Low warping is its core advantage.	The PBT itself has an extremely low moisture absorption rate (better than PA66), and combined with the isotropic trend of the long glass fibers (reducing anisotropy due to winding), the part maintains extremely stable dimensions in a humid environment.
Heat resistance aging	It can be used for a long time at temperatures above 100 °C.	The skeletal structure prevents softening and collapse under high temperatures.

Application scenario: Material Pioneer

LGF PBT, thanks to its high rigidity, low warpage and weather resistance, has become the preferred material in the automotive and electronic electrical industries.
Automotive Industry
Exterior structural components: such as door handle brackets, sunroof frames, and rearview mirror bases. These components need to withstand frequent mechanical operations and outdoor temperature variations ranging from hot to cold. LGF PBT's excellent fatigue resistance and weather resistance perfectly match these requirements.
Wiper system: wiper arms. Traditionally made of metal, using LGF PBT plastic pellet can reduce weight and eliminate the need for painting for rust prevention.
Sensor housings: By taking advantage of its extremely low warping and dimensional stability, it protects precision electronic components.
Electrical and Electronic
Connectors and Slots: PBT with a high glass fiber content (such as 50% LGF) can be used to manufacture long-sized and fine-spaced connectors, ensuring they do not bend under the high temperature of reflow soldering. Electrical tool casing: Resists drop impacts and motor overheating.

FAQ

Q: How is the heat resistance of this material?

A: Excellent. The heat distortion temperature (HDT) of LGF PBT compound resin is relatively high, and its long-term operating temperature can reach above 100 °C.

Q: Will "floating fibers" appear on the surface of LGF PBT products?

A: Long glass fibers are indeed more prone to floating fibers than short glass fibers. This issue can be addressed by methods such as increasing the mold temperature.

Q: Why is LGF PBT recommended over LGF PA66 in a humid environment?

A: PA66 has a strong hygroscopic property. After absorbing water, its rigidity decreases and its dimensions change. In contrast, PBT has an extremely low moisture absorption rate and can maintain its dimensional stability and electrical insulation even in high-temperature and high-humidity environments.

LGF PBT material represents the transition of engineering plastics from "filling modification" to "structural reinforcement". It bridges the performance gap between ordinary engineering plastics and metal castings.
For product engineers who are seeking precise size control, high-load-bearing structures, and products that can withstand humid and hot environments, LGF PBT composite is not merely an alternative solution, but rather an innovative choice that offers design flexibility and weight reduction benefits.
