What is PA6 CF50?

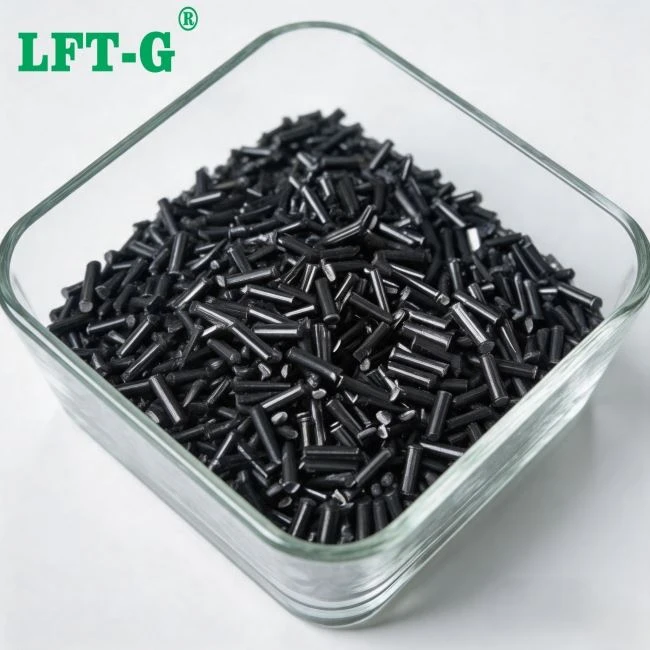

LFT-G® PA6 CF50 BC05B is a 50% long carbon fiber reinforced polyamide 6 composite engineered for extreme engineering applications requiring maximum mechanical strength and structural lightweighting. The premium grade from LFT-G® (Model: LFT-G® PA6 LCF50-BC05B) utilizes an advanced continuous pultrusion manufacturing process to encapsulate long carbon strands rather than traditional short chopped fragments. This structural approach preserves an unbroken internal 3D carbon fiber skeleton that uniformly distributes dynamic load forces, offering a definitive solution for severe structural metal replacement layouts.
Core Product Advantages:
- ● Extreme Structural Rigidity: 34,500 MPa tensile modulus confidently replaces machined stainless steel, brass, and cast alloys.
- ● Low Isotropic Shrinkage: Near-zero mold contraction (0.05% - 0.12%) guarantees absolute dimensional stability with zero part warping.
- ● Superior Surface Wear Resistance: Continuous fiber network reinforces the polymer matrix against sliding friction and wear abrasion.
- ● Inherent EMI Shielding: Conductive network infrastructure provides permanent electromagnetic protection for sensitive electronics enclosures.
The Ultimate Kinematic Threshold: Standard PA6 CF50 vs. LFT-G® PA6 LCF50
Sourcing engineers often specify generic 50% carbon fiber nylon only to face sudden part cracking or cooling deformation. Discover how continuous long carbon fiber network architecture redefines industrial part life.
Standard Short PA6 CF50
- High Differential Warping: Non-uniform cooling contractions cause noticeable part deformation and structural assembly errors.
- Brittle Stress Points: Limited energy dissipation curves result in catastrophic fracturing under sudden mechanical impacts.
- Structural Reliability: RISK-PRONE
LFT-G® PA6 LCF50-BC05B
- Isotropic Control Balance: Balanced shrinkage values completely eliminate component warping and shrinkage during cooling cycles.
- Premium Tribo-Performance: Continuous interlocking fiber distribution securely reinforces the surface against sliding abrasive wear.
- Structural Reliability: UNMATCHED
Typical Material Properties (LFT-G® PA6 LCF50-BC05B)
The engineering parameters detailed below represent certified properties verified inside the LFT-G® Polymer Characterization Facility under Dry-As-Molded (DAM) conditions. Testing complies with explicit ISO and ASTM testing protocols to guarantee laboratory data provenance.
Mechanical Testing Profile
| Property | Test Standard | Value (DAM State) |
|---|---|---|
| Tensile Modulus | ISO 527 | 34,500 MPa |
| Tensile Strength | ISO 527 | 302 MPa |
| Flexural Modulus | ISO 178 | 24,500 MPa |
| Flexural Strength | ISO 178 | 405 MPa |
| Notched Izod Impact (23°C) | ISO 180/A | 34 kJ/m² |
Thermal & Physical Analysis
| Property | Test Standard | Value |
|---|---|---|
| Density | ISO 1183 | 1.32 g/cm³ |
| HDT (0.45 MPa) | ISO 75 | 212 °C |
| HDT (1.80 MPa) | ISO 75 | 212 °C |
| Mold Shrinkage | ISO 294-4 | 0.05 - 0.12 % |
Processing Parameters & Recommendations
Standard molding guidelines for processing LFT-G® PA6 LCF50 composites. To safeguard the dense 50% carbon fiber nylon framework from excessive mechanical shear and fiber attrition, implement a low-compression screw profile, keep back pressure beneath 50 psi, and optimize gating geometries.
| Parameter | Recommendation |
|---|---|
| Drying Temperature | 85 - 105 °C |
| Drying Time | 4 - 6 hours (Dehumidifying desiccant air dryer required) |
| Rear / Feed Zone (Zone ①) | 270 - 290 °C |
| Center / Melt Zone (Zone ②) | 285 - 300 °C |
| Front / Nozzle Temp (Zone ③) | 290 - 305 °C |
| Mold Temperature | 95 - 125 °C |
Multi-Industry Application Cases
High-Stress Robotic Kinetic Primary Arm Extensions
Industrial automation articulators demand maximum specific rigidity to minimize high-speed kinetic inertia. LFT-G® PA6 LCF50 successfully substitutes for precision-milled titanium joint extenders, reducing dynamic motor torque requirements by 45% while maintaining strict positioning tolerances under severe operating sequences.
Oilfield Subsea Downhole Fluid Control Actuators
Subsea energy equipment requires strict protection against high hydrostatic pressures and abrasive wear. The aligned 50% long carbon fiber framework blocks chemical solvent corrosion and surface scratching, outperforming standard aluminum components inside deep-sea fluid transport modules.
High-Speed Rail Structural Caliper Support Links
Powertrain control brackets require immense fatigue resistance against multi-axial vibrations. LFT-G® PA6 LCF50 delivers premium dimensional integrity, effortlessly replacing heavy cast-iron sub-frames to maximize lightweighting performance across modern rail transit networks.
