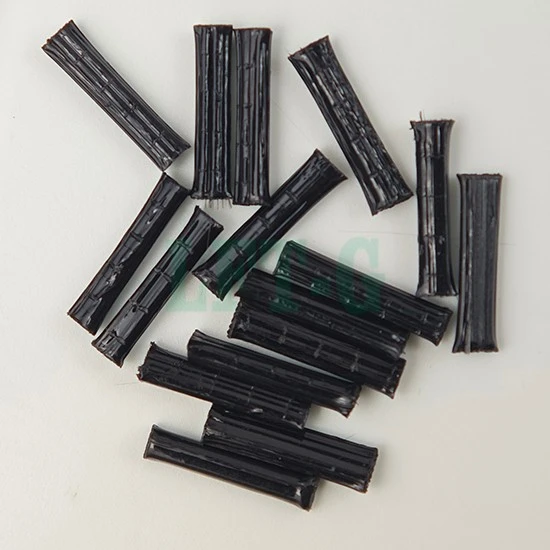

LFT-G®PA6 CF40 BC04B is an ultra-structural 40% Long carbon fiber reinforced polyamide 6 composite engineered for demanding applications requiring supreme mechanical modulus and maximum lightweighting. The premium grade from LFT-G® (Model: LFT-G® PA6 LCF40-BC04B) applies an advanced continuous pultrusion manufacturing process to completely wet out long carbon filaments rather than using standard short chopped fragments. This technical approach preserves a continuous internal 3D carbon fiber skeleton that uniformly distributes dynamic load forces, offering a definitive solution for severe structural metal replacement layouts.
● Low Isotropic Shrinkage: Near-zero mold contraction (0.08% - 0.15%) guarantees absolute dimensional stability with zero part warping.
● Superior Surface Wear Resistance: Continuous interlocking long-strand network reinforces the polymer matrix against sliding friction and wear abrasion.
The Tribo-Mechanical Armor: Standard PA6 CF40 vs. LFT-G® PA6 LCF40
Sourcing engineers often specify generic 40% carbon fiber nylon only to face sudden part cracking or cooling deformation. Discover how continuous long carbon fiber network architecture redefines industrial part life.
Standard Short PA6 CF40
- Fragmented Core Base: Broken chopped carbon fiber fragments easily detach under dynamic friction, accelerating surface wear.
- High Differential Warping: Non-uniform cooling contractions cause noticeable part deformation and structural assembly errors.
- Brittle Stress Points: Limited energy dissipation curves result in catastrophic fracturing under sudden mechanical impacts.
- Structural Reliability: RISK-PRONE
LFT-G® PA6 LCF40-BC04B
- Interlocking 3D Skeleton: Continuous long carbon core filaments absorb external forces uniformly to prevent high-load creep deformation.
- Isotropic Control Balance: Balanced shrinkage values completely eliminate component warping and shrinkage during cooling cycles.
- Premium Tribo-Performance: Continuous interlocking fiber distribution securely reinforces the surface against sliding abrasive wear.
- Structural Reliability: UNMATCHED
Typical Material Properties (LFT-G® PA6 LCF40-BC04B)
The parameters detailed below represent typical engineering properties recorded inside the LFT-G® Polymer Characterization Facility under Dry-As-Molded (DAM) conditions. Mechanical and thermal testing complies with specific ISO and ASTM standards to ensure strict laboratory data validation.
Standard molding guidelines for processing LFT-G® PA6 LCF40 composites. To safeguard the dense 40% carbon fiber nylon framework from excessive mechanical shear and fiber attrition, implement a low-compression screw profile, keep back pressure beneath 50 psi, and optimize gating geometries.
Parameter
Recommendation
Drying Temperature
85 - 105 °C
Drying Time
4 - 6 hours (Dehumidifying desiccant air dryer required)
Our manufacturing plant operates under verified international control frameworks. Every manufacturing lot undergoes technical evaluation inside the calibrated LFT-G® Testing Laboratory prior to shipment clearance.
Our Certificate
IATF 16949:2016
ISO 9001:2015
Environmental Management System Certificate
ISO 9001:2015
Quality Management Systems Certified
SGS Checked
Material Verification & Audited Provenance
RoHS & REACH
100% Compliant Non-Hazardous Lots
Multi-Industry Application Cases
Aerospace Satellite & UAV Structural Frameworks
Industrial aerospace mechanisms demand supreme specific rigidity to support heavy optics and sensor payloads under severe environmental shifts. LFT-G® PA6 LCF40 directly replaces machined magnesium and aluminum brackets, reducing piece production cycles while delivering incredible thermal tolerance and structural safety paths.
Heavy-Load Robotic Joints & Actuator Gears
Optimized specifically for high-torque robotic joints and automation equipment. The aligned 40% long carbon fiber alignment limits high-speed rotational inertia forces, offering superior wear resistance and zero fatigue distortion over millions of operational sequences.
High-Stress Automotive Powertrain Sub-Frames
Under-the-hood structural brackets demand exceptional continuous creep limits and permanent defense against crack propagation caused by heavy engine block vibrations. LFT-G® PA6 LCF40 easily replaces heavy die-cast assemblies to achieve massive lightweighting metrics.
Frequently Asked Questions (FAQ)
Q: Are you a factory or a trading company?
A: We are a direct manufacturing factory specializing in continuous long fiber reinforced thermoplastics (LFT). Our ISO 9001:2015 certified plant in China handles the entire compounding process, supplying consistent premium materials straight to international buyers with full batch trace datasets.

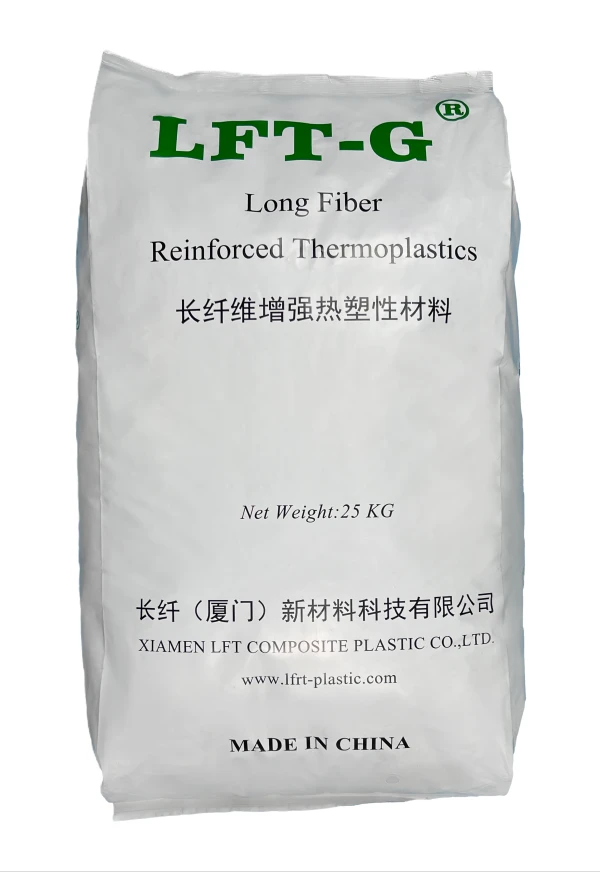

Q: Can I request a 25KG material sample bag?
A: Yes, absolutely. LFT-G welcomes laboratory and molding validation testing. Please connect with our sales representatives directly to coordinate an expedited international sample package delivery.
Q: What is your standard bulk order delivery time?
A: Standard validation trial samples take 2 to 5 working days to prepare, while full-scale maritime containerized bulk orders clear plant dispatch inside of 1 to 2 weeks.
Accelerate Structural Metal Replacement Solutions
Eradicate the weight penalties, surface friction wear, and cooling warping flaws of generic short-fiber compounds. Contact the global LFT-G® engineering department today for custom product optimizations.
