Basic Info
Model NO.
PA66 LGF30
Technical Performance
GB/T 23615.1-2009
Certificates
SGS
Moulding Method
Injection
Fiber Type
Gfrp
Glass Fiber Content
GF30%
Grade
Injection Molding
UV Resistant
Yes
Applied
Engineering Plastic, Automotive Parts
Raw Material
PA66, long Fiberglass-LFT material
Trademark
LFT-G
Transport Package
25kg/Bag
Specification
PA66 LGF30
Origin
Xiamen, China
HS Code
3908101190
Product Description
Product Introduction:

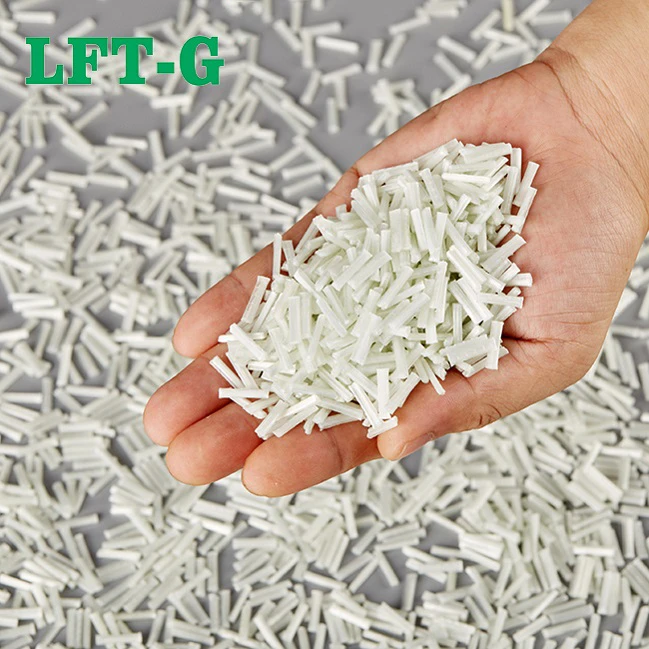

-Nylon/PA66 granules reinforced by long fiberglass. The performance of final products of this raw material were in line with the national standard.
-The product is based on PA66 resin as basic, add long glass fiber, efficient flame retardants and various additives, formed by twin-screw Injection blending.
Advantage:
high mechanical strength
high toughness
high softening point
good wear resistance
self-lubrication
long-term work at higher temperatures
It has high CTI value , excellent electrical insulation , low smoke and low toxicity characteristics.
Details of related standard:
GB/T 23615.1-2009 Accessorial material for architectural aluminum alloy profiles -- Part 1: Thermal barrier strip of polyamide
EN 14024-2004 Metal profiles with thermal barrier -- Mechanical performance Requirement, proof and tests for assessment
YS/T 437-2008 Aluminium profiles moment of inertia calculation methods and computing software requirements
JG/T 174-2005 Thermal barrier strips for construction industry
GB 5237.6 -2012 Wrought aluminium alloy extruded profiles for architecture -- Part 6: Thermal barrier profiles
GB/T 8478-2008 Aluminium windows and doors
GB/T 8484-2008 Graduation and test for thermal insulating properties of doors and windows
JG 175-2011 Insulating aluminum alloy profiles with thermal barrier for buildings
Xiamen LFT-G PA66 LGF30 Granules Performance Table
1.Sample water content less than 0.2% by weight.
2.Norm laboratory condition:(23±2)oC and (50±10)% relative humidity.
3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
About color:
The color of our products is black and natural white, but we also can customize according to customers' requirements.
Application:
Widely used in machinery, instrumentation, automotive parts, electrical and electronics, railways, household appliances, telecommunications, textile, sports and leisure goods, pipes and precision engineering products.
Packaging & Delivery:
Packaging details:25kg/bag
Delivery details: shipped in 7-15 working days after payment
Name:Candyhu@lfrtplastic.com
Phone:0086-1395009 5707
Address:Xiangan District,Xiamen city,Fujian province,china
-Nylon/PA66 granules reinforced by long fiberglass. The performance of final products of this raw material were in line with the national standard.
-The product is based on PA66 resin as basic, add long glass fiber, efficient flame retardants and various additives, formed by twin-screw Injection blending.
Advantage:
high mechanical strength
high toughness
high softening point
good wear resistance
self-lubrication
long-term work at higher temperatures
It has high CTI value , excellent electrical insulation , low smoke and low toxicity characteristics.
Details of related standard:
GB/T 23615.1-2009 Accessorial material for architectural aluminum alloy profiles -- Part 1: Thermal barrier strip of polyamide
EN 14024-2004 Metal profiles with thermal barrier -- Mechanical performance Requirement, proof and tests for assessment
YS/T 437-2008 Aluminium profiles moment of inertia calculation methods and computing software requirements
JG/T 174-2005 Thermal barrier strips for construction industry
GB 5237.6 -2012 Wrought aluminium alloy extruded profiles for architecture -- Part 6: Thermal barrier profiles
GB/T 8478-2008 Aluminium windows and doors
GB/T 8484-2008 Graduation and test for thermal insulating properties of doors and windows
JG 175-2011 Insulating aluminum alloy profiles with thermal barrier for buildings
Xiamen LFT-G PA66 LGF30 Granules Performance Table
| NO. | Item | Unit | GB/T ISO527/ASTM | HC-Technical specification |
| Material Properties | ||||
| 1 | Density | g/cm3 | 1.3±0.05 | 1.28-1.35 |
| 2 | Linear expansion coefficient | K-1 | (2.3-3.5)×10-5 | (2.3-3.5)×10-5 |
| 3 | Vicat softening temperature | oC | ≥230oC | ≥233oC |
| 4 | Melting point | oC | ≥240 | ≥240 |
| 5 | Testing for tensile cracks | - | No cracks | No cracks |
| 6 | Shore hardness | D | 80±5 | 80-85 |
| 7 | Impact strength(Unnotched) | KJ/m2 | ≥35 | ≥38 |
| 8 | Tensile strength(longitudinal) | MPa | ≥180 | ≥182 |
| 9 | Elasticity modulus | MPa | ≥4500 | ≥4550 |
| 10 | Elongation at break | % | ≥1.5 | ≥1.5 |
| 11 | Tensile strength(transverse) | MPa | ≥170 | ≥170 |
| 12 | High temperature tensile strength(transverse) | MPa | ≥145 | ≥147 |
| 13 | Low temperature tensile strength(transverse) | MPa | ≥140 | ≥141 |
| 14 | Water resistance tensile strength(transverse) | MPa | ≥135 | ≥135 |
| 15 | Aging resistance tensile strength(transverse) | MPa | ≥170 | ≥170 |
2.Norm laboratory condition:(23±2)oC and (50±10)% relative humidity.
3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
About color:
The color of our products is black and natural white, but we also can customize according to customers' requirements.
Application:
Widely used in machinery, instrumentation, automotive parts, electrical and electronics, railways, household appliances, telecommunications, textile, sports and leisure goods, pipes and precision engineering products.
Packaging & Delivery:
Packaging details:25kg/bag
Delivery details: shipped in 7-15 working days after payment
