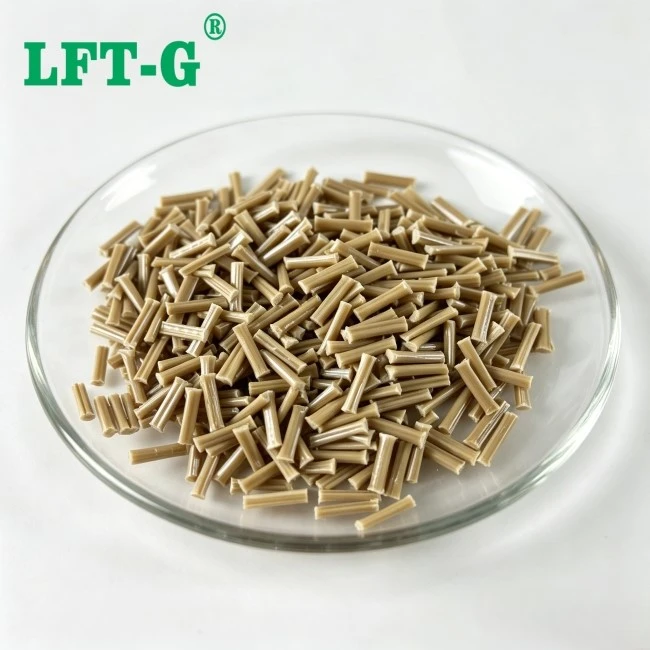

PPS LGF50 High-Temperature Long Glass Fiber Reinforced PPS
-
What is PA6 LGF30 Material?
LFT-G® PPS LGF50 is an advanced high-performance engineering thermoplastic composed of Polyphenylene Sulfide (PPS) reinforced with 50% long glass fibers (LGF). Designed for extreme operating environments, this long fiber reinforced PPS compound provides outstanding heat resistance, dimensional stability, and chemical durability compared with conventional short-fiber PPS grades.
The unique long glass fiber structure creates a stable reinforcement network throughout molded parts, enabling excellent creep resistance, low moisture sensitivity, and reliable mechanical performance under continuous high temperatures and aggressive chemical exposure. PPS LGF50 is widely used for precision structural components, electrical systems, and industrial applications requiring long-term reliability.
-
Main Advantages
Exceptional Thermal Stability
PPS LGF50 maintains outstanding mechanical performance at elevated temperatures with excellent heat resistance, making it suitable for continuous high-temperature applications.
Outstanding Chemical Resistance
The PPS matrix provides excellent resistance to fuels, oils, solvents, and aggressive chemicals, ensuring reliable performance in harsh industrial environments.
Superior Dimensional Stability
Long glass fiber reinforcement minimizes warpage and shrinkage variation, providing excellent dimensional accuracy for precision-molded components.
Excellent Electrical Performance
PPS LGF50 offers stable electrical insulation properties and low moisture absorption, making it ideal for electrical and electronic components.
Long-Term Mechanical Reliability
The continuous long glass fiber structure improves creep resistance and fatigue durability, supporting extended service life under mechanical and thermal stress.
-
Performance Edge: Long Fiber vs. Short Fiber
Long glass fibers (LGF) deliver significantly enhanced mechanical performance compared to conventional short-fiber (GF) compounds. The table below illustrates the key advantages across four critical parameters.
LFT-G® PPS LGF50 vs. PPS GF50 (Short Fiber)
-
Processing Guidelines – Injection Molding
Optimize your molding process with the following recommended parameters for LFT-G® PA6 LGF30. Proper control ensures maximum fiber retention and part performance.
Pre‑drying
2–4 hrs @ 80–90 °C
Use a dehumidifying dryer
Melt Temperature
243 – 270 °C
Measured in barrel
Mold Temperature
54 – 93 °C
Measured, not set
Injection Pressure
69 – 124 MPa
Free-flow check valve
Molding & Cooling
Full-round runners Ø 5–6 mm
Gate ≥ 5 mm · 100+ ton clamp
-
Performance-Driven Cases
A semiconductor equipment manufacturer required durable plastic components for high-temperature processing systems. Traditional materials showed dimensional changes and reduced performance after continuous exposure to heat and chemicals.
Customer Challenge
• Plastic components warped under continuous high-temperature operation
• Chemical exposure affected long-term material reliability
• Precision parts required better dimensional stability
• Metal components increased weight and processing costs
PPS LGF50 Custom Solution

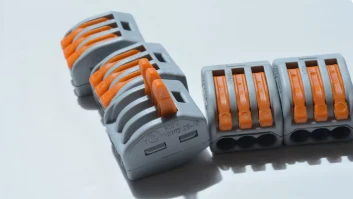

LFT-G® PPS LGF50 was applied to wafer handling fixtures, electrical connector housings, sensor brackets, and precision equipment components:
• 50% long glass fiber reinforcement improved stiffness and creep resistance
• PPS resin provided excellent thermal and chemical stability
• Low moisture absorption ensured precise dimensions
• Injection molding enabled complex high-precision designs
Measurable Field Results
• Improved component reliability under high-temperature conditions
• Maintained dimensional accuracy during continuous operation
• Reduced weight compared with metal alternatives
• Extended service intervals in demanding environments
Q: What is the flame retardant grade of PPS LGF50?
A: PPS LGF50 inherently reaches UL94 V-0 flame retardant level without extra halogen additives. It has low smoke emission and stable fire resistance, fully meeting safety requirements for electrical and electronic industrial components.
Q: Does PPS LGF50 have good chemical resistance?
A: Yes. PPS LGF50 offers excellent resistance to acids, alkalis, organic solvents, oils and fuels, with performance close to PEEK. It maintains stable mechanical strength in long-term corrosive environments, ideal for chemical equipment and offshore engineering parts.
Q: What are the main applications of PPS LGF50?
A: PPS LGF50 is widely used in automotive high-temperature under-hood parts, electronic connector housings, chemical pump bodies and precision industrial structural components. It fits scenarios that require both high heat resistance, corrosion resistance and structural load-bearing capacity.
