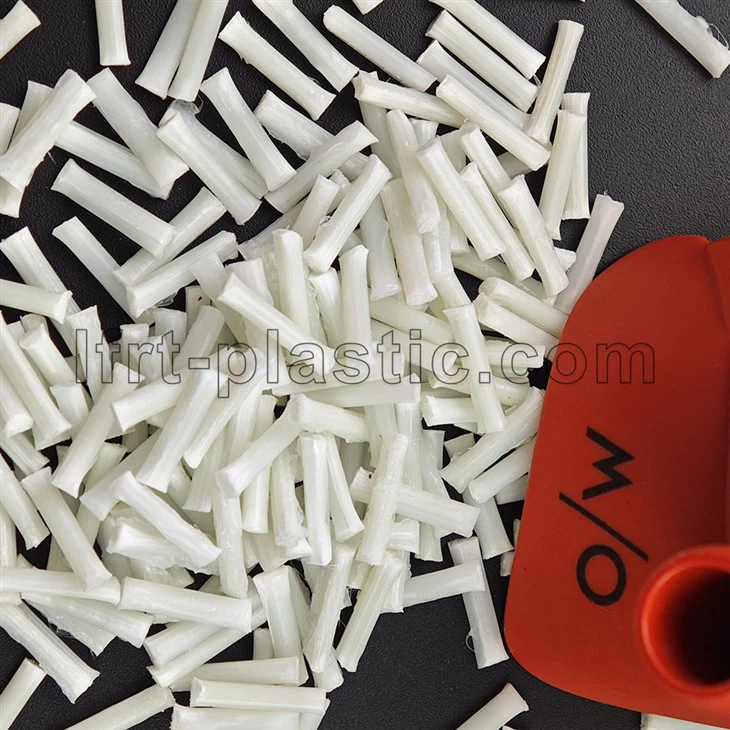

50% Long Glass Fiber Reinforced Nylon 66 Material
What is PA66 GF50?
PA66 GF50 is an ultra-high performance composite using a Polyamide 66 (Nylon 66) base reinforced with a 50% loading of glass fibers. LFT-G® technology enhances this by utilizing long glass fibers to create a robust internal fiber skeleton. This results in a material with exceptional strength and stiffness, making it a direct substitute for metals like aluminum, zinc, and magnesium.
This is our pinnacle strength compound, engineered for the most critical load-bearing applications. It combines the extreme mechanical properties of 50% LGF with the superior thermal and chemical resistance of PA66, creating the ultimate solution for replacing structural metal components.
LFT-G® PA66 GF50 enables direct metal replacement.
Use Case Showdown: Replacing a Die-Cast Aluminum Bracket
How does LFT-G® PA66 GF50 perform in a real-world engineering challenge against traditional alternatives? Here's the breakdown:
LFT-G® PA66 LGF50
Weight & Efficiency: -50% (Drastic Weight Savings)
Manufacturing: Single Step (Net-Shape Molding)
Vibration Damping (NVH): Excellent (Superior Damping)
Performance Under Heat: Excellent (High Reliability)
Die-Cast Aluminum (A380)
Weight & Efficiency: Baseline (Heavy)
Manufacturing: Multi-Step (Needs Machining)
Vibration Damping (NVH): Poor (High Resonance)
Performance Under Heat: Superior (Extremely High Temps)
Short-Fiber PA66 GF50
Weight & Efficiency: -48% (Good Weight Savings)
Manufacturing: Single Step (Net-Shape Molding)
Vibration Damping (NVH): Good (Better than Metal)
Performance Under Heat: Good (But lower strength retention)
Technical Specifications
Data for LFT-G® PA66 GF50. As a hygroscopic material, properties are provided for both Dry-As-Molded (DAM) and conditioned (50% RH) states.
| Property | Test Method | Metric (DAM) | Metric (COND) |
|---|---|---|---|
| Density | ISO 1183 | 1.56 g/cm³ | 1.54 g/cm³ |
| Tensile Modulus | ISO 527 | 16,000 MPa | 11,500 MPa |
| Tensile Strength | ISO 527 | 233 MPa | 170 MPa |
| Notched Izod Impact (23°C) | ISO 180 | 43 kJ/m² | 56 kJ/m² |
| Heat Deflection Temp (1.8 MPa) | ISO 75 | 253 °C | - |
Download Complete LFT-G PA66 GF50 Data Sheet PDF
Applications Where Strength is Paramount
Automotive Fan Cover Structures
A-pillar/B-pillar reinforcements, structural nodes, sub-frames, and EV battery protection structures.
Industrial & Robotics
Large End-of-Arm Tooling (EOAT), high-pressure pump bodies, and high-load industrial machinery frames.
Aerospace & Defense
Load-bearing UAV chassis, tactical equipment mounts, and lightweight structural components for military use.
Frequently Asked Questions
Q: When is LFT PA66 LGF50 the definitive choice?
A: LFT PA66 LGF50 is the definitive choice when your application requires the absolute maximum strength and stiffness possible from our PA66 portfolio, especially in high-temperature conditions. It is specifically designed for direct replacement of structural metals where performance cannot be compromised.
Q: How does the 50% fiber loading impact processing and design?
A: The high fiber content results in a high-viscosity melt with lower flow. This necessitates robust processing equipment and carefully designed molds with generous flow paths and large gates. We strongly recommend a collaborative design and mold flow analysis phase to ensure success, a service our expert team provides.
Challenge Metal. Win with Composite.
Your most demanding metal replacement projects require our most capable material. Contact our engineering team to leverage the ultimate strength of LFT-G® PA66 GF50 and redefine what's possible in lightweight structural design.
