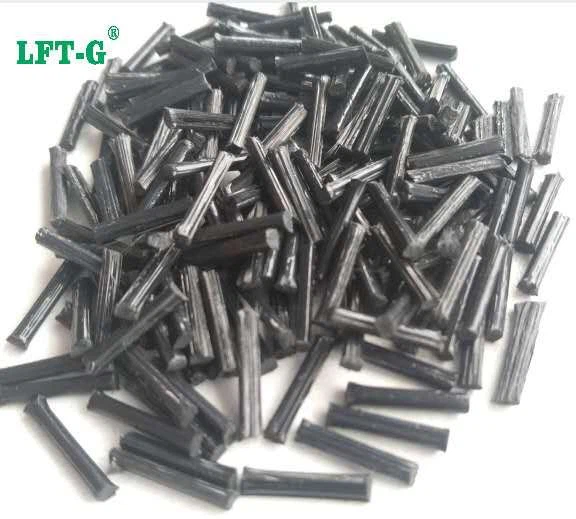

PA66 Long Carbon Fiber Materials

Details

PA66 Long carbon fiber is an kind of reinforced thermoplastic modified plastic material.
It's made to virgin PA66 resin filled certain content long carbon fiber.Therefore,it has excellent character than short fiber.Such as:
(1)excellent toughness,high strength
(2）light weight and wear resistance
(3)low creep and corrosion resistance

The mechanical properties, electrical properties and thermal properties of long carbon fiber reinforced PA66 were significantly higher than those of short carbon fiber reinforced PA66.

Long Glass Fiber In Polypropylene66 via Injection Molding performance

Product desctiptipn

PA66 polyamide 66 or nylon 66 chemical and physical properties PA66 has a high melting point in polyamide materials.It's a semi-crystalline material.PA66 maintains high strength and stiffness at higher temperatures.

The shrinkage rate of PA66 is between 1% and 2%. The addition of carbon glass additives can reduce the shrinkage rate to 0.2%~1%. The difference between the process direction and the vertical direction of the process direction is that the larger PA66 is soluble to many solvents, but weak against acids and other chlorinated agents.

PA66 has good wear resistance, heat resistance, oil resistance and chemical resistance. It also greatly reduces the water absorption and shrinkage of the raw material. It has excellent dimensional stability and excellent mechanical strength.

Specially,nylon66 filled certain content long carbon fiber,its character has great improve about tougness and weight .Therefore it suitable for the main wing of the aircraft,duck wing, stable wing, nacelle and other aerospace fields.

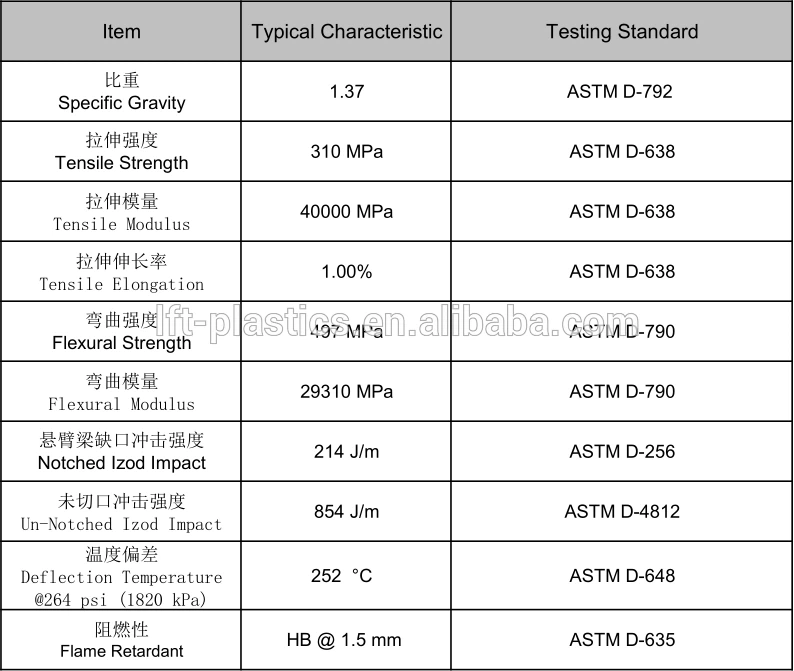

Technical Data Sheet

PA66-LCF50物性表

Why Choose US

1.Possess own factories , can provide 100% factory price.
2.Our team has 20 years of comprehensive knowledge.
3.Advanced production equipment.
4.Good quality and good service.

Contact email: sale03@lfrtplastic.com

Contact whatsapp: +86 15727645397

FAQ

1.What is difference between the Long carbon fiber PA66 pellets and the long carbon fiber PA66?

Long carbon fiber nylon66 pellets is made from one monomer which has 6 carbon atoms while Long carbon fiber PA66 pellets is made from 2 monomers with each one having 6 carbon atoms, hence the PA66 name. An important difference between Long carbon fiber nylon 6 pellets& 66 is mold shrinkage. PA66 would be a better choice between the two.

2.What is long carbon fiber nylon？What are the categories？

Long carbon fiber nylon is made by filling nylon with carbon fiber with different content.The Carbon fiber content is from 20%-60%.Different content of long carbon fiber has different characteristics.the higher content of carbon fiber,the better the characteristic.

Packing and Delivery

Sample: free ,but freight charged on customers

Delivery Time: 7-15days

Delivery Method: by sea , by air, by express

PA66 long carbon fiber
