PA6‑BC04A · Long Carbon Fiber Reinforced Nylon 6
What is PA6 LCF40 Material?
LFT-G® PA6 LCF40 is a high-performance long carbon fiber reinforced Nylon 6 compound designed for lightweight structural and precision engineering applications. Containing 40% long carbon fibers, this advanced composite provides exceptional stiffness, strength retention, and dimensional stability compared with conventional short-carbon-fiber-reinforced PA6 materials.
The continuous carbon fiber network enhances load transfer efficiency inside molded components, enabling outstanding mechanical performance under high stress, vibration, and repeated loading conditions. PA6 LCF40 is an ideal material solution for metal replacement applications, robotics components, industrial equipment parts, and high-performance structural components requiring superior strength-to-weight performance.
Performance Highlights
Ultra‑High Stiffness
Long carbon fibers provide exceptional rigidity for lightweight structural applications
High Strength & Durability
Excellent load-bearing capability and fatigue resistance under continuous stress.
Dimensional Precision
Low deformation and consistent molding accuracy for complex parts
Superior Vibration Resistance
Carbon fiber reinforcement improves stability for dynamic and precision components
Lightweight Metal Replacement
High stiffness-to-weight ratio reduces weight while maintaining structural performance

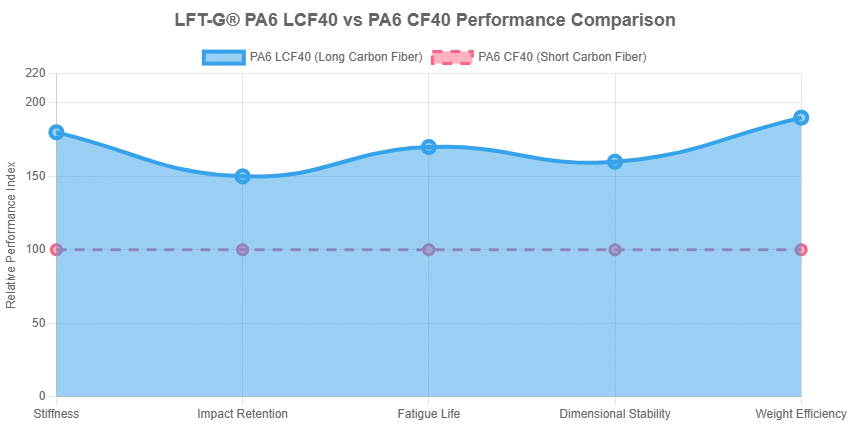

Performance Edge: Long vs. Short Fiber
The continuous long‑carbon architecture delivers a transformative performance advantage over conventional short‑fiber PA6 compounds across all critical mechanical and thermal metrics.
LFT-G® PA6 LCF40 vs. PA6‑GF40 (Short Fiber)
Technical Data Sheet
-
Processing Guidelines – Injection Molding
Optimize your molding process with the following recommended parameters for LFT‑G® PA6‑BC04A. Proper control ensures maximum fiber retention and optimal part performance.
Pre‑drying
2–4 hrs @ 85–100 °C
Dehumidifying dryer required
Melt Temperature
243 – 270 °C
Measured in barrel
Mold Temperature
54 – 95 °C
Measured, not set
Injection Pressure
70 – 130 MPa
Free‑flow check valve
Molding & Cooling
Full‑round runners Ø 5–6 mm
Gate ≥ 5 mm · 100+ ton clamp
-
Application Focus Areas
Automotive Powertrain Components
Exceptional stiffness and thermal stability (HDT 208 °C) enable reliable performance in engine brackets, timing chain covers, and transmission housings – replacing metal with significant weight reduction without compromising durability under sustained thermal‑mechanical stress.
Aerospace & UAV Structures
Ultra‑high modulus and low density deliver critical weight savings in drone arms, landing gear struts, and fuselage reinforcement frames, enhancing flight endurance and structural integrity under dynamic loading.
Precision Industrial Gearing
High flexural modulus and excellent creep resistance ensure precise gear tooth geometry, reduced wear, and extended service life in heavy‑duty transmission and conveyor systems.
Robotics & Automation End‑Effectors
A combination of high stiffness, low moisture absorption, and dimensional stability ensures consistent positioning accuracy in robotic grippers, tool changers, and sensor mounts under varying environmental conditions.
Q: What makes PA6 LCF40 different from standard PA6 GF40?
A: Unlike conventional short‑glass compounds, PA6‑BC04A uses 40% long carbon fibers that remain continuous within the pellet. This unique architecture delivers significantly higher tensile modulus (30,998 MPa vs. ~15,000 MPa for short‑glass PA6‑GF40), better creep resistance, and superior thermal stability – enabling thinner‑wall designs and direct metal replacement in highly loaded applications.
Q: Can PA6 LCF40 be processed on standard injection molding machines?
A: Yes. PA6‑BC04A is designed for conventional injection molding equipment. However, due to the high carbon fiber content, we recommend using a low‑shear screw design (18:1–24:1 L/D ratio), free‑flow check valve, and large‑diameter nozzle to preserve fiber length and achieve optimal mechanical properties.
Q: What are the key processing considerations for PA6 LCF40?
A: Critical factors include: thorough pre‑drying to below 0.05% moisture content to prevent hydrolysis, maintaining melt temperature between 243–270 °C to avoid carbonization, using mold temperatures of 54–95 °C for optimal surface finish and dimensional stability, and minimizing residence time to prevent thermal degradation of the carbon fiber‑matrix interface.
Contact: Emily
Email: sale04@lfrtplastic.com
WhatsApp / Mobile: +86 188 5034 4811
Hot Tags: pa6 lcf40 high stiffness carbon fiber compound, China, manufacturers, suppliers, factory, buy, customized
