LFT-MXD6-NG04 Thermoplastic
LGF40 MXD6 is a high-performance engineering thermoplastic composite based on MXD6 semi-aromatic polyamide, reinforced with 40% long glass fibers. It is primarily designed for structural and semi-structural applications requiring high strength, high rigidity, dimensional stability, heat resistance, and long-term load-bearing capability.
Why LGF40 MXD6?
-
High rigidity and high strength
One of the core advantages of LGF40 MXD6 is its high comprehensive mechanical properties. -
Low water absorption characteristic brought by the MXD6 matrix
Compared with traditional PA6 and PA66, MXD6 has a lower tendency to absorb water. -
Excellent dimensional stability
LGF40 MXD6 combines the low water absorption characteristic of MXD6 itself with 40% long glass fiber reinforcement, making the material have good dimensional stability. -
Heat resistance and long-term performance
MXD6 belongs to semi-aromatic polyamide, and its molecular structure contains aromatic structures, so it has a good foundation for heat resistance.

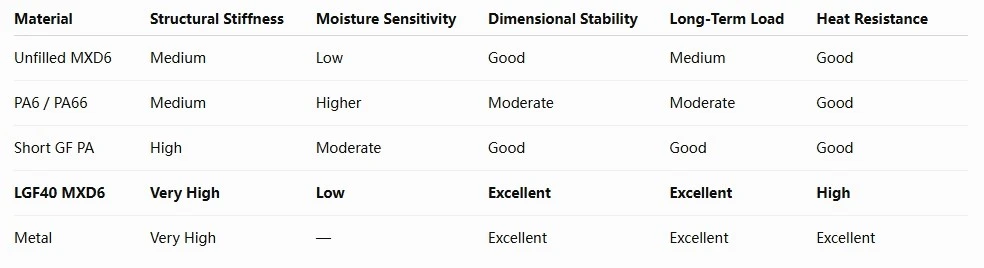

LGF40 MXD6 vs. Conventional Engineering Plastics
LGF40 MXD6 is not intended simply as another glass-filled nylon grade. Its material value comes from the combination of semi-aromatic MXD6 + 40% long glass fiber.
LGF40 MXD6: Application Fields
LGF40 MXD6 is mainly designed for engineering injection molded components that require high mechanical properties and structural stability.
Automotive
Applicable to the engine compartment, chassis, electrical systems and related structural components of new energy vehicles, such as:
structural supports, mounting brackets, supporting components, housings, cooling system components, sensor housings, electrical structural components, structural supports for new energy vehicles, peripheral structural components of the battery system, etc.
Electrical and Electronics
Connector structural components, sensor housings, electrical equipment supports, electronic equipment structural components, mounting bases, precision housings, etc.
Industrial machinery
Mechanical housing, pump body components, valve body components, gears, brackets, mounting bases, support pieces, and industrial equipment structural components.
Frequently Asked Questions
What is LGF40 MXD6?
+
-
LGF40 MXD6 is a 40% long glass fiber reinforced MXD6 polyamide designed for high-strength, high-stiffness structural applications.
Is LGF40 MXD6 suitable for automotive components?
+
-
Yes. Fiber-reinforced MXD6 materials are used in automotive applications, and LGF40 MXD6 is particularly suitable for structural components requiring high stiffness, strength and dimensional stability.
What is the difference between LGF40 MXD6 and GF PA66?
-
LGF40 MXD6 uses MXD6 as the matrix resin. Compared with conventional PA6/PA66, MXD6 offers a higher glass-transition temperature and lower water absorption, while the 40% long glass fiber provides additional structural reinforcement.
Is LGF40 MXD6 suitable for lightweighting?
+
-
Yes. Its high strength-to-weight potential and injection-molding capability make it suitable for lightweight structural design, especially where metal components can potentially be replaced or consolidated into an integrated thermoplastic structure.
LGF40 MXD6 can offer a comprehensive material solution.
It addresses some of the design challenges of traditional nylon in terms of water absorption and dimensional stability through the MXD6 matrix, and further enhances structural rigidity, strength and long-term load-bearing capacity by incorporating 40% long glass fibers.
For structural components in fields such as automobiles, electrical electronics, new energy, and industrial machinery, LGF40 MXD6 is an excellent solution.
