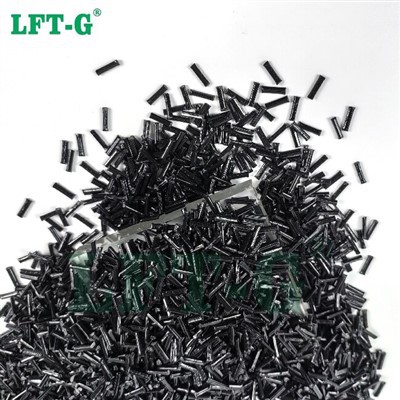

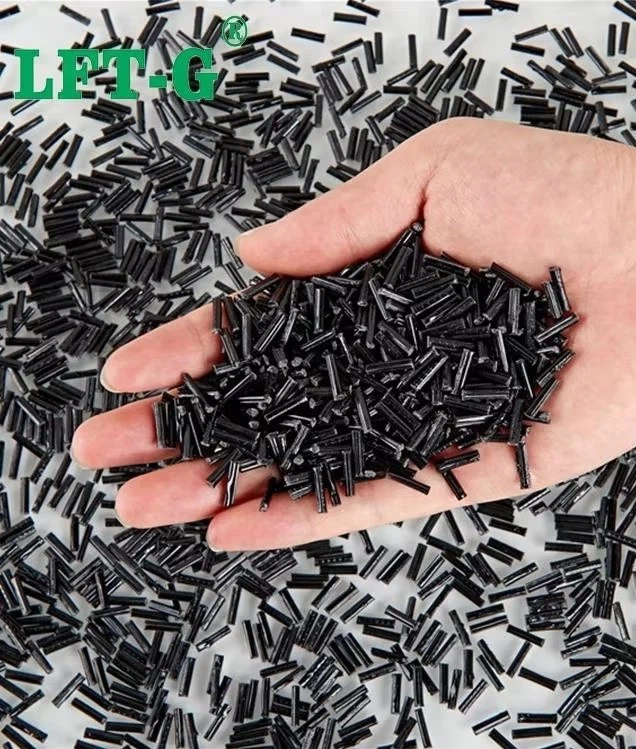

LFT-G® PP GF60 (LGF60) – Ultra-Stiff Metal Replacement
LFT-G® PP GF60 (Model: LFT-PP-GF60-NG06) is an extreme-performance structural composite engineered with a massive 60% long glass fiber loading. It pushes the physical limits of polypropylene, bridging the final gap between thermoplastics and die-cast metal alloys.
Standard glass fiber pp maxes out at 40% due to brittleness. By utilizing our continuous pultrusion technology, the 10-12mm fibers form an ultra-dense, unbreakable 3D internal skeleton. This delivers unmatched rigidity, near-zero shrinkage, and exceptional load-bearing capacity for the most demanding heavy-duty applications.
Core Specifications:
- ● Extreme Modulus: Exceeds 12,000 - 13,000 MPa flexural stiffness.
- ● Weight Reduction: 50% lighter than standard aluminum castings.
- ● Dimensional Precision: Minimal thermal expansion and warpage.
- ● Corrosion Free: Total immunity to rust and industrial fluids.
Data-Driven Benchmark: The 60% LGF Advantage
For engineers evaluating material substitution, numbers speak louder than words. See how our 60% long glass fiber PP compares against traditional materials in critical engineering metrics.
Technical Data Sheet: LFT-PP-GF60-NG06
| Property | Test Standard | Unit | Typical Value |
|---|---|---|---|
| Base Resin | - | - | Polypropylene (PP) |
| Fiber Content | ISO 1172 | % | 60% Long Glass Fiber |
| Density | ISO 1183 | g/cm³ | 1.48 - 1.49 |
| Tensile Strength | ISO 527 | MPa | 154 - 160 |
| Flexural Modulus | ISO 178 | MPa | 12,000 - 13,500 |
| Notched Impact Strength | ISO 179 | kJ/m² | 45 - 48 |
Industry Applications: Absolute Rigidity
Heavy-Duty Impellers & Fans
Large industrial fans face massive centrifugal forces that easily warp standard plastics. With a 14,000 MPa modulus, our 60% LGF compound ensures fan blades remain perfectly rigid at high RPMs, increasing aerodynamic efficiency while vastly reducing the weight load on the motor.
Automotive Sub-Frames & Mounts
Designed to replace magnesium and aluminum in vehicle chassis components. It offers the exact dimensional stability and load-bearing strength required for engine mounts and panoramic sunroof frames, eliminating secondary machining and rusting issues forever.
UAV & Drone Chassis
Commercial drones require absolute frame rigidity for flight stability, but metal is too heavy. Our 60% glass fiber formulation provides the ultimate specific stiffness (stiffness-to-weight ratio), allowing extended flight times and higher payload capacities.
Frequently Asked Questions (FAQ)
Q: Is 60% glass fiber PP too brittle to use?
A: If it were short fiber, yes. A 60% short fiber compound would be extremely brittle. However, because our LFT-G® technology maintains 10-12mm long glass fiber, the continuous internal skeleton absorbs and distributes stress, giving it remarkable durability despite the massive rigidity.
Q: Does PP GF60 require special injection molding machines?
A: Standard machines work, but due to the high 60% glass content, the melt viscosity is high. We highly recommend using highly wear-resistant (bimetallic) screws and barrels. Additionally, larger gates and low back pressure are required to prevent excessive fiber breakage during injection.
Q: How does the weight of LGF60 compare to Aluminum?
A: Our LGF60 compound has a density of approximately 1.45 g/cm³. Cast aluminum has a density of around 2.7 g/cm³. This means that by switching to our material, you immediately cut the weight of the component by almost 50% while maintaining the necessary structural rigidity.
Pushing the Limits of Plastic?
When standard materials fail, our 60% LGF compound delivers. Contact the LFT-G® engineering team for TDS and metal replacement analysis.
Request Ultra-Stiff LGF60 Quote
