50% Long Glass Fiber Reinforced Polypropylene
Engineered for maximum performance, LFT-G® PP GF50 is a polypropylene composite fortified with 50% long glass fiber (PP-LGF50). It achieves unparalleled stiffness and strength, pushing the boundaries of thermoplastic capabilities for the most demanding metal replacement projects where structural integrity is paramount.
- √ Ultimate Stiffness & Tensile Strength
- √ Exceptional Load-Bearing Performance
- √ Superior Dimensional Stability & Creep Resistance
Technical Datasheet
Key Performance Properties
The following data represents typical values obtained from injection-molded specimens of our LFT-G® PP GF50 grade. These values are for reference only and should not be used for establishing specifications.
| Property |
Value PP LGF50 NG05H |
Test Method (ASTM) | Unit (Metric) |
|---|---|---|---|
| Density | 1.32 | D792 | g/cm³ |
| Tensile Strength | 150 | D638 | MPa |
| Flexural Modulus | 10.5 | D790 | GPa |
| Notched Izod Impact (23°C) | 348 | D256 | J/m |
| Heat Deflection Temp (1.8 MPa) | 159 | D648 | °C |
The LFT Advantage: Why Long Fiber Outperforms Short Fiber
When selecting a "PP GF50" material, understanding the difference between long glass fiber (LGF) and short glass fiber (SGF) is critical. While both contain 50% glass reinforcement, their performance is vastly different.
In conventional SGF composites, the short fibers act as simple fillers, offering a moderate increase in stiffness. In our LFT-G® technology, the long fibers are preserved during injection molding to create a robust, three-dimensional **internal glass fiber skeleton**. This interwoven network is the key to superior performance:
- Drastically Higher Impact Strength: The long fiber network absorbs and distributes impact energy across the entire part, preventing crack propagation. This results in components that are far tougher and more durable than their SGF counterparts, especially in cold environments.
- Enhanced Creep & Fatigue Resistance: Under constant load or cyclical stress, the stable fiber skeleton resists deformation and material fatigue, ensuring long-term dimensional stability and reliability for critical structural parts.

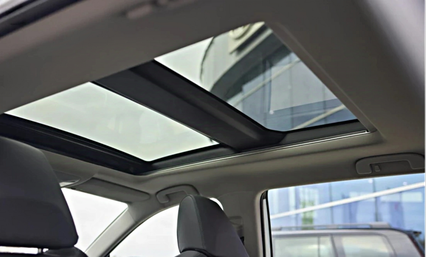

Proven Applications
Our Certificate
IATF 16949:2016
ISO 9001:2015
Environmental Management System FDA Certificate
Start Your Next Project
Ready to push the boundaries of performance with LFT-G® PP GF50?
Request a Quote Request a Sample
