What is GF40 PP FR Anti-Static Grade?
LFT-G® NG04ASFR PP GF40 is a 40% long glass fiber reinforced Polypropylene composite with good 94V0-Anti-static performance. This advanced glass reinforced plastic is engineered for applications requiring the highest level of safety and structural integrity. This reinforced polymer combines a durable polypropylene matrix with 40% long glass fiber, specialized anti-static additives, and a halogen-free flame retardant system. Unlike standard plastics, this PP GF40 grade provides a trifecta of benefits: the superior strength of long fibers, reliable static dissipation, and certified UL94 V0 flame retardancy, making it essential for critical components in New Energy Vehicles, high-density electronics, and industrial safety equipment.
Features of LFT-G®NG04ASFR PP GF40
|
Product Name |
Model No |
Specification |
Fiber Type | Material Type |
Main Features |
|
LFT-G®PP GF40 FR Anti-static Grade |
LFT-CPP-NG04ASFR |
PP+40%LGF+FR +Anti-Static Grade |

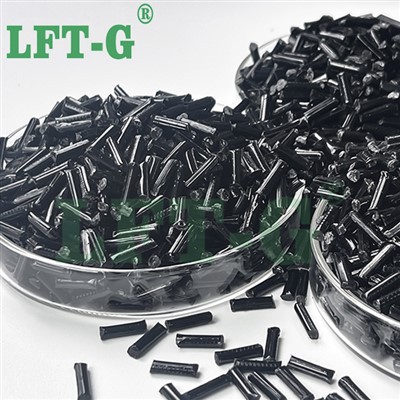

long glass fiber | 10-12mm Granules |
High Strength, 94 V0-Flame Resistance, Excellent Anti-Static properties |
| Package |
Molding Type |
Origin | Color | Applied | Delivery Time |
| 25kg/Bag |
Injection/Extrusion |
Xiamen, China |
Natural White/Black |
Automotive Part Electrical equipment |
7-9days by Air 7-21days by Sea |
What is PP GF40 AS FR properties?
LFT-G® NG04AS FR PP-GF40 Datasheet
Mechanical PropertiesProperty |
Value |
Unit |
Test Standard |
|---|---|---|---|
| Tensile Strength | 126 | MPa | ISO 527 |
| Tensile Modulus | 12590 | MPa | ISO 527 |
| Elongation at Break | 1.4 - 2.4 | % | ISO 527 |
| Flexural Strength | 172 | MPa | ISO 178 |
| Flexural Modulus | 8456 | MPa | ISO 178 |
| Notched Izod Impact Strength (23°C) | 26-34 | kJ/m² |
ISO 180
|
| Notched Charpy Impact Strength (23°C) | 25-34 | kJ/m² |
ISO 179
|
Other PropertiesProperty |
Value |
Unit |
Test Standard |
|---|---|---|---|
|
Specific Gravity (Density)
|
1.36 |
g/cm³
|
ISO 1183
|
|
Molding Shrinkage (Flow)
|
0.2 - 0.3 | % |
ISO 294-4
|
|
Heat Deflection Temperature (1.8MPa)
|
155-159 |
°C
|
ISO 75-2/A
|
|
Melt Temperature
|
210 - 250 |
°C
|
|
|
Mold temperature
|
40 - 80 |
°C
|
|
| Flame Resistance | 94-V0 | @2.0mm | UL 94 |
| Surface Resistivity | 104~106 | Ω/sq | ASTM D257 |
Disclaimer: Please note: The data provided for LFT-G® NG04ASFR PP GF40 represents typical values obtained from controlled laboratory testing according to international standards. These figures are intended for reference and comparison purposes only. The final properties of a molded component can be influenced by processing parameters, part design, colorant usage, and other manufacturing variables.
Download Complete NG04ASFR PP-GF40 Data Sheet PDF
Processing Information
To achieve optimal performance from LFT-G® PP GF40, precise control over the injection molding process is key. The 40% long glass fiber loading requires careful management of screw speed and back pressure to preserve the fiber network, which is fundamental to the material's superior strength and consistent anti-static and flame retardant properties.
| ①Drying Time | 2-4 hours |
|
Drying Temperature |
80-100°C |
| ② Temperature Zone (Melt) | 210-250°C |
| ③Mold Temperature | 40-80°C |

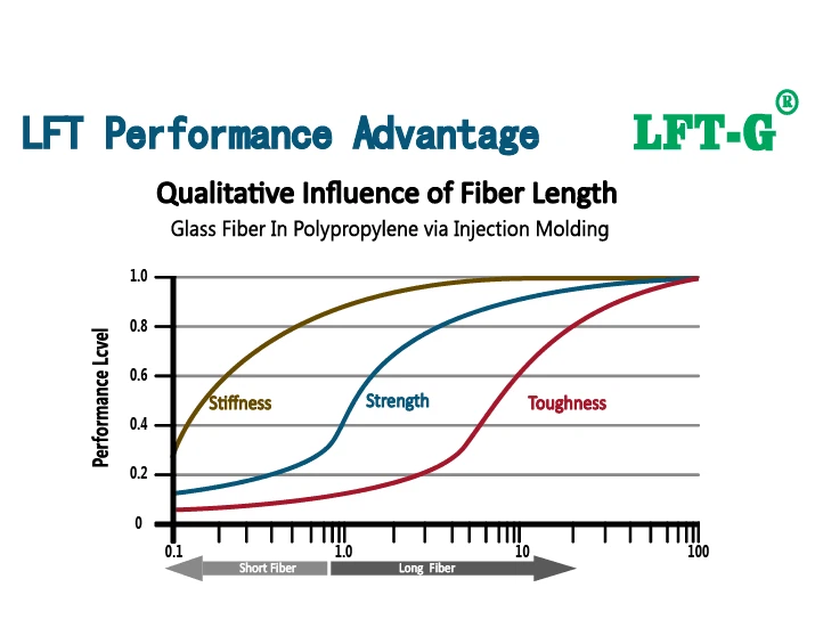

Why use Long Glass fiber?
- Certified UL94 V0 Flame Retardancy
- Reliable Anti-Static Performance
- High Strength and Structural Integrity
- Superior Impact Resistance
- Excellent Dimensional Stability
- Great Strength-to-Weight Ratio
What is PP GF40 Anti-static FR Grade used for?
NEV Automotive Part
This FR Anti-static PP GF40 composite is critical for New Energy Vehicle (NEV) components where fire safety and static control are paramount for battery systems. The material's unique combination of properties makes the **NEV Battery Cover** and its related components safer, lighter, and more reliable than alternatives.
- Battery pack enclosures and covers
- Cell holders and module frames
- Housings for Battery Management Systems (BMS)
- High-voltage connectors and busbar covers
- Charging port and inlet assemblies
Electrical Connector Part
With its UL94 V0 rating and reliable static dissipation, this **LFT-G® NG04ASFR PP GF40** is the definitive choice for robust housings and components in sensitive electrical equipment, protecting against fire, physical impact, and electrostatic discharge (ESD). An expert notes, "For applications like industrial control panels or data centers, using a material with this combination of safety features isn't a luxury, it's a necessity. It mitigates multiple risk factors in one robust solution."
- Industrial circuit breaker housings
- Housings for power distribution units (PDUs)
- Casings for high-power tools
- Enclosures for equipment in ATEX-rated environments
- Connectors and casings in household appliances
FAQ
What does UL94 V0 and Anti-Static mean for this grade?
A: This grade offers dual safety features. The UL94 V0 rating means our LFT-G® PP GF40 self-extinguishes quickly in a fire test, while the anti-static properties prevent the buildup of static electricity, which is critical for protecting electronics and preventing sparks.
Is the performance of both features permanent?
A: Yes, because the flame retardant and anti-static additives are compounded directly into this **reinforced polymer**, both safety features are permanent and integral to the material. Their performance will not degrade or wear off over time.
Do the additives affect the strength of the composite?
A: Our formulation is expertly balanced to provide certified flame retardancy and reliable anti-static performance while maintaining the high mechanical strength and impact resistance characteristic of our **long glass fiber** composites. You get comprehensive safety without sacrificing structural integrity.
