What is YD PP GF40?
LFT-G® NG04YD PP GF40 is a 40% long glass fiber reinforced Polypropylene composite with high impact strength(>50KJ/m2)performance for pump body part copolymer material. This specialized glass reinforced plastic is engineered for applications demanding extreme toughness and structural reliability. By reinforcing a durable polypropylene copolymer with 40% long glass fiber and impact modifiers, this reinforced polymer delivers exceptional impact strength, far surpassing standard grades. Unlike short fiber versions that can be brittle, the interlocking long fiber network provides superior energy absorption, making it the premier choice for a robust water pump body plastic part, automotive components, and industrial housings that must withstand vibration and sudden impacts.
Features of LFT-G®NG04YD PP GF40
|
Product Name |
Model No |
Specification |
Fiber Type | Material Type |
Main Features |
|
LFT-G®PP GF40 YD Grade For Pump body part |
LFT-CPP-NG04YD LGF40YD |
PP+40%LGF +Extremely Impact Strength |

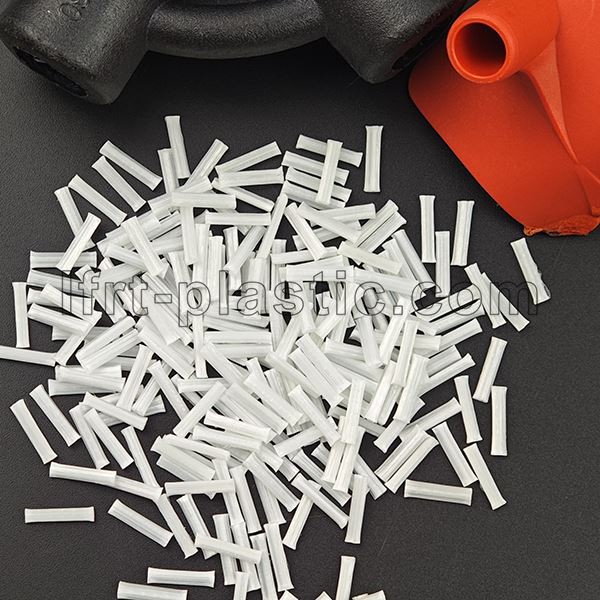

long glass fiber | 10-12mm Granules |
High Strength, high impact, Excellent impact properties. >50KJ/m2 for pump body part |
| Package |
Molding Type |
Origin | Color | Applied | Delivery Time |
| 25kg/Bag |
Injection/Extrusion |
Xiamen, China |
Natural White/Black |
Water Pump body Plastic, Automotive, Home Appliance part |
7-9days by Air 7-21days by Sea |
PP-GF40 material properties?
LFT-G® NG04YD PP-GF40 Datasheet
Mechanical PropertiesProperty |
Value |
Unit |
Test Standard |
|---|---|---|---|
| Tensile Strength | 126 | MPa | ISO 527 |
| Tensile Modulus | 8652 | MPa | ISO 527 |
| Elongation at Break | 1.8 - 2.5 | % | ISO 527 |
| Flexural Strength | 172 | MPa | ISO 178 |
| Flexural Modulus | 5989 | MPa | ISO 178 |
| Notched Izod Impact Strength (23°C) | 53 | kJ/m² |
ISO 180
|
| Notched Charpy Impact Strength (23°C) | 52 | kJ/m² |
ISO 179
|
Other PropertiesProperty |
Value |
Unit |
Test Standard |
|---|---|---|---|
|
Specific Gravity (Density)
|
1.20 |
g/cm³
|
ISO 1183
|
|
Molding Shrinkage (Flow)
|
0.2 - 0.3 | % |
ISO 294-4
|
|
Heat Deflection Temperature (1.8MPa)
|
155-159 |
°C
|
ISO 75-2/A
|
|
Melt Temperature
|
210 - 250 |
°C
|
|
|
Mold temperature
|
40 - 80 |
°C
|
|
| Impact Strength | >50 | KJ/m2 |
Disclaimer: Please note: The data provided for LFT-G® NG04YD PP GF40 represents typical values obtained from controlled laboratory testing according to international standards. These figures are intended for reference and comparison purposes only. The final properties of a molded component can be influenced by processing parameters, part design, colorant usage, and other manufacturing variables.
Download Complete NG04YD PP-GF40 Data Sheet PDF
Processing Information
To achieve optimal performance and surface finish from LFT-G® PP GF40, precise control over the injection molding process is key. The 40% long glass fiber loading requires careful management of screw speed, back pressure, and injection velocity to preserve the fiber network, which is fundamental to the material's superior strength and extreme impact properties.
| ①Drying Time | 2-4 hours |
|
Drying Temperature |
80-100°C |
| ② Temperature Zone (Melt) | 210-250°C |
| ③Mold Temperature | 40-80°C |
Why use Long Glass fiber?
- Extreme impact strength, ideal for dynamic loads.
- High strength and stiffness for replacing metal parts.
- Excellent dimensional stability and very low warpage.
- Superior resistance to fatigue and long-term creep.
- Great strength-to-weight ratio for lightweighting.
- Maintains toughness even in cold environments.
What is PP GF40 YD Grade used for?
Pump Body Part
This high-impact PP GF40 composite is specifically engineered to replace traditional materials like cast iron or bronze in demanding fluid handling applications. The material's exceptional toughness resists cracking from water hammer effects and mechanical stress, while its chemical resistance ensures a long service life, making it the perfect material for any modern Water Pump body Plastic.
A dialogue with our lead engineer on a recent client success:
"A client came to us with failing pump housings made from a short fiber composite; they couldn't handle the pressure spikes. We recommended our LFT-G® NG04YD PP GF40. The long fiber network dissipated the impact energy so effectively that they eliminated field failures entirely, all while reducing the part's weight by 30% compared to their previous metal design. It was a complete success."
- Industrial Centrifugal Pump Housings
- Residential Pool and Spa Pump Bodies
- Agricultural Irrigation Pump Components
- Sump Pump Casings and Impellers
- Chemical Dosing Pump Heads
Automotive & Appliance Part
The extreme toughness of this LFT-G® NG04YD PP GF40 makes it ideal for manufacturing robust automotive and appliance components that must endure repeated impacts, vibration, and harsh operating conditions without failure.
- Automotive fan shrouds and cooling modules
- Structural battery trays for electric vehicles
- Washing machine structural drums and support rings
- Dishwasher pump housings and spray arms
- Heavy-duty power tool casings
- Structural parts for recreational vehicles
FAQ
What makes this grade ideal for a water pump body?
A: This grade is perfect for a water pump body plastic part due to its exceptional impact strength to resist pressure spikes, excellent creep resistance to maintain dimensional stability under constant pressure, and the inherent chemical resistance of polypropylene.
How is high impact strength achieved in this material?
A: The high impact strength in our LFT-G® PP GF40 YD grade comes from the combination of a toughened copolymer matrix and the energy-absorbing network of long glass fibers, which is far superior to the performance of short fiber reinforced plastics.
Is this PP GF40 grade recyclable?
A: Yes, as a thermoplastic, this long glass fiber composite is fully recyclable. Promoting a circular economy is important, and our reinforced polymer can be reprocessed to create new, durable products at the end of its service life.
