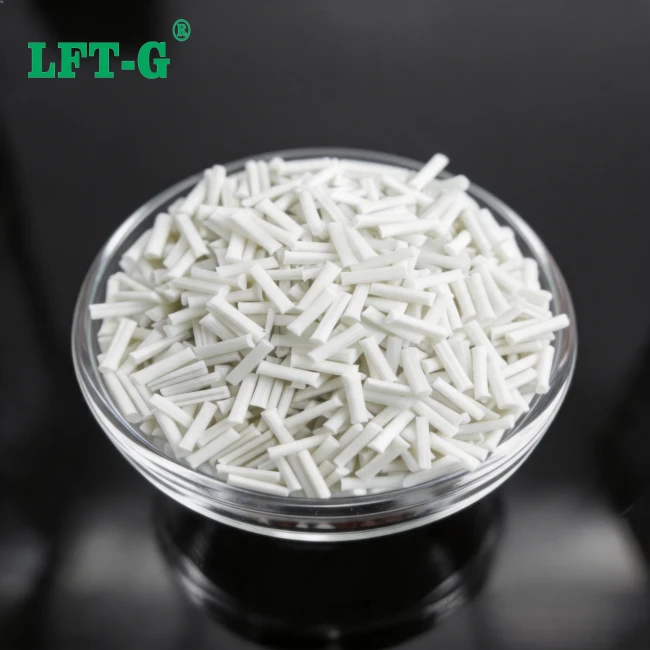

What is PA6 LGF40 material?
Core Strength
Superior Structural Rigidity
Outstanding Impact Toughness
Low warpage & low shrinkage
Lightweight high-performance solution
- Long-fiber reinforcement ensures efficient load transfer.
- Toughened system eliminates brittle failure.
- Excellent heat aging and low warpage.
- Enhanced fatigue resistance extends component service life.
Property Chart: PA6 LGF40 vs PA6 GF40
Comparison between LFT-G® PA6 LGF40TA (long fiber, toughened) and standard PA6 + 40% short glass fiber. Long fiber significantly improves impact and strength retention.
Technical Data Sheet
| Property | Typical Value | Test Standard |
|---|---|---|
| Specific Gravity | 1.43 g/cm³ | ASTM D-792 |
| Molding Shrinkage | 0.10 - 0.30% | ASTM D-955 |
| Tensile Strength | 172 MPa | ISO 527 |
| Tensile Modulus | 12026 MPa | ISO 527 |
| Tensile Elongation | 1.7 - 2.5% | ISO 527 |
| Flexural Strength | 269 MPa | GB/T 9341 |
| Flexural Modulus | 9569 MPa | GB/T 9341 |
| Notched Izod Impact | 43 kJ/m² | ISO 180 |
| Notched Charpy Impact | 40 kJ/m² | ISO 179 |
Processing Guidelines – Injection Molding
Pre-drying
Dry at 90-110°C for 3-4h with desiccant dryer.Moisture <0.01% prevents hydrolysis.
Injection Parameters
Melt: 210-240°CMold: 40-60°C
Injection pressure: 80-115 MPa
Slow to moderate speed.
Tooling Design
Low-compression screw, full round runners, large gates.L/D ratio 18:1 to 24:1, clamp force >100T.
Melt Temperature
210 – 240°C
Mold Temperature
40 – 60°C
Injection Pressure
80 – 115 MPa
Back Pressure
Low to moderate
Applications
LFT-G® PA6 LGF40TA delivers metal replacement potential and mechanical robustness in demanding sectors:
Automotive & EV

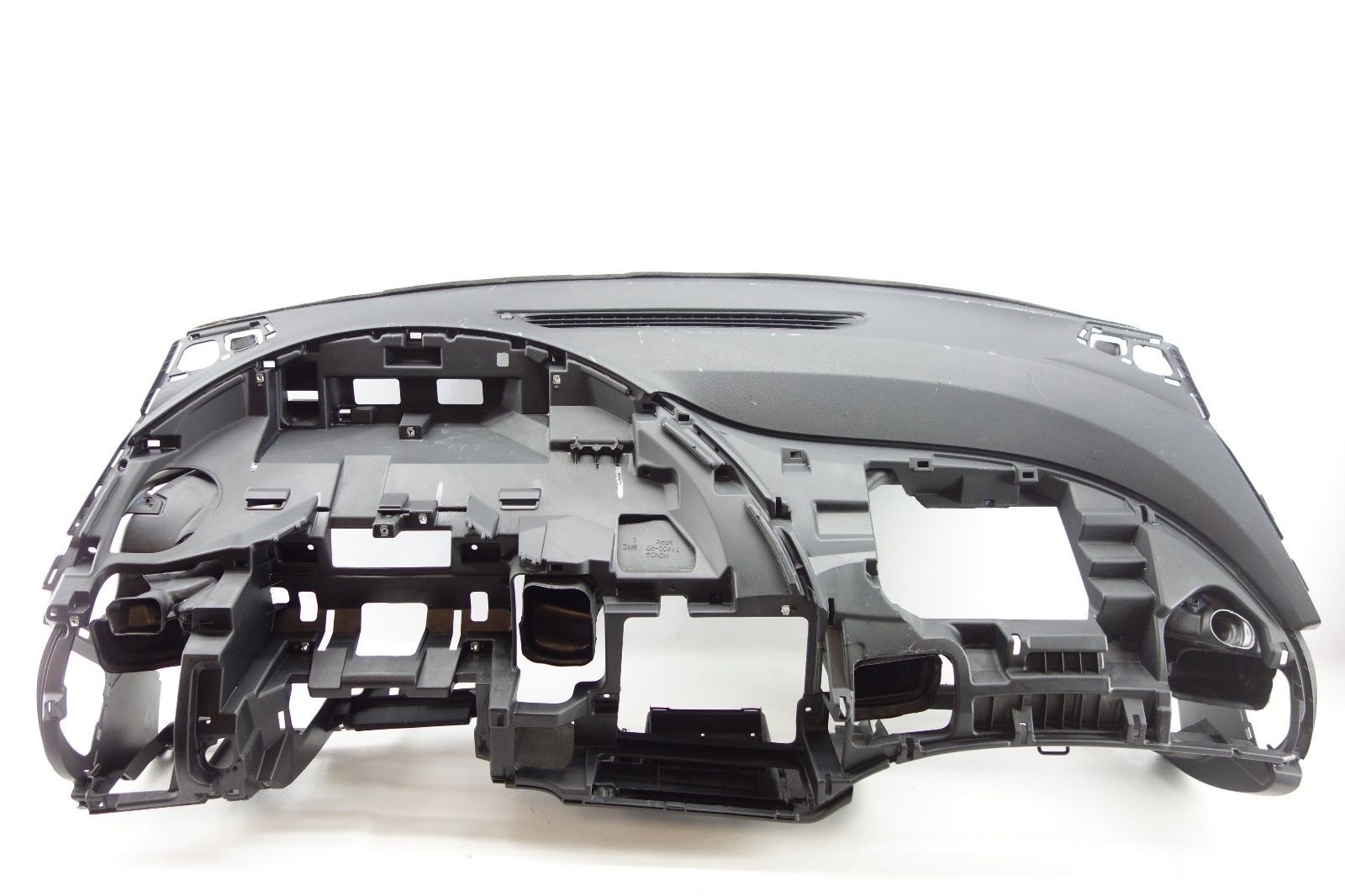

Structural brackets, battery housings, front-end modules, pedal supports. Reduces weight while maintaining crash resistance and stiffness.
Industrial Machinery

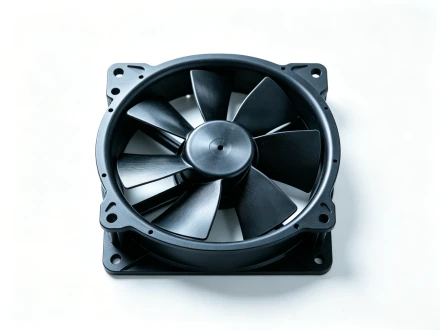

Pump housings, fan blades, conveyor components, heavy-duty covers: excellent creep resistance and long-term dimensional stability.
Power Tools & E-Mobility
Tool housings, gearboxes, e-bike frame inserts, levers. High impact strength and ergonomic lightweight design.
FAQ
A: LFT-G® PA6 LGF40TA offers a high strength-to-weight ratio, excellent impact resistance, and superior fatigue life, making it a lightweight alternative to metals. Its long glass fiber reinforcement provides structural rigidity comparable to die-cast aluminum while reducing weight by up to 40%.
A: Compared to standard short fiber PA6, LFT-G® PA6 LGF40TA delivers significantly higher impact strength, fatigue resistance, and creep performance. The long fiber 3D network absorbs energy better and reduces warpage. This makes it the preferred choice for dynamic and load-bearing applications.
A: Dry LFT-G® PA6 LGF40TA at 90–110°C for 3–4 hours (moisture <0.01%) before processing. Set melt temperature 210–240°C, mold 40–60°C, and injection pressure 80–115 MPa with a low-compression screw. Proper drying and low-shear settings preserve fiber length and maximize mechanical performance.
