Name: China PA6 LGF30 High-Impact Granules Factory LFT-G
Brand: LFT-G
SKU: 308299598

PA6 LGF30 High-Performance Long Glass Fiber Reinforced Nylon 6

30% long glass fiber · injection molding grade · superior mechanical properties & thermal stability

What is PA6 LGF30 Material?

LFT-G® LGF50 PP Composite

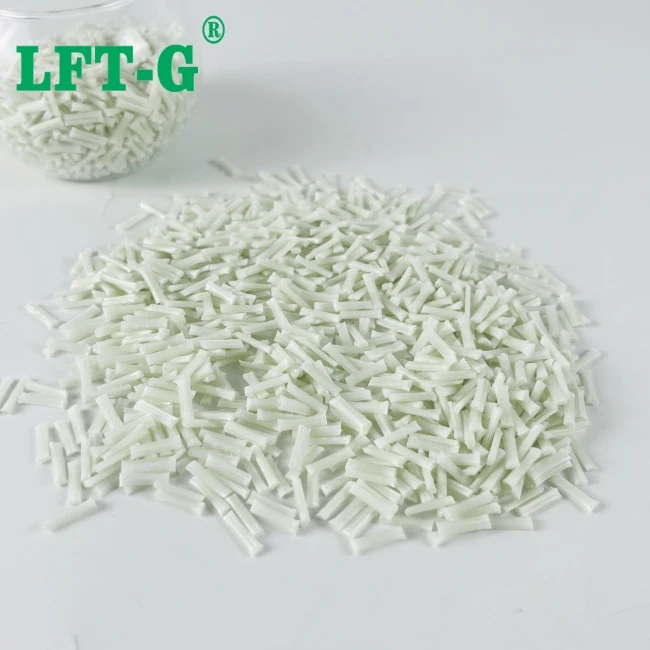

LFT-G^® PA6 HLGF30 is a high-performance engineering thermoplastic composed of Nylon 6 (PA6) reinforced with 30% long glass fibers (LGF). Unlike conventional short-fiber compounds, the long-fiber architecture delivers superior load-bearing capacity, impact toughness, and creep resistance, making it the material of choice for lightweight structural components in automotive, industrial, and electrical applications.

The continuous fiber network within each pellet ensures excellent fiber retention after molding, translating into an exceptional strength-to-weight ratio and long-term durability under cyclic loading and elevated temperatures.

🔹 Injection Molding 🔹 30% Glass Fiber 🔹 Black / Natural 🔹 HDT 208 °C

Main Advantages

High Strength & Stiffness

Tensile strength up to 179 MPa and flexural modulus of 8,269 MPa for load-bearing structural parts.

Superior Impact Resistance

Notched Izod impact of 34 kJ/m² - outperforms short-fiber grades by up to 80% in toughness.

High Heat Deflection

HDT of 208 °C (1.8 MPa) enables use in under-hood and high-temperature environments.

Dimensional Stability

Low molding shrinkage (0.20–0.40%) and excellent creep resistance for precision components.

Design Flexibility

Compatible with complex geometries, thin-wall designs, and metal replacement strategies.

Performance Edge: Long Fiber vs. Short Fiber

Long glass fibers (LGF) deliver significantly enhanced mechanical performance compared to conventional short-fiber (GF) compounds. The table below illustrates the key advantages across four critical parameters.

LFT-G^®PA6 LGF30 vs. PA6 GF30 (Short Fiber)

LFT-G® PA6 LGF30 vs. PA6 GF30 (Short Fiber)

Long-fiber advantage

Up to +89% impact strength & +27% flexural modulus vs. short-fiber PA6 GF30.

Note: Values are typical for injection-molded specimens. Short-fiber data represents industry-average PA6 GF30. Long-fiber data is based on LFT-G^® PA6 HLGF30 tested per ISO/ASTM standards.

PA6 LGF30 Technical Data Sheet

Property	Value	Test Method
Specific Gravity	1.35 g/cm³	ASTM D-792
Tensile Strength	179 MPa	ISO 527
Tensile Modulus	11,820 MPa	ISO 527
Tensile Elongation	1.7 – 2.5 %	ISO 527
Flexural Strength	272 MPa	GB/T 9341
Flexural Modulus	8,269 MPa	GB/T 9341
Notched Izod Impact	34 kJ/m²	ISO 180
Notched Charpy Impact	31 kJ/m²	ISO 179
Heat Deflection Temp. (1.8 MPa)	208 °C	ISO 75-2

* Values are typical for injection-molded specimens and should not be used for specification limits. All data based on laboratory testing.

Processing Guidelines – Injection Molding

Optimize your molding process with the following recommended parameters for LFT-G^® PA6 LGF30. Proper control ensures maximum fiber retention and part performance.

processing guide.png

Pre‑drying

2–4 hrs @ 80–90 °C

Use a dehumidifying dryer

→

Melt Temperature

243 – 270 °C

Measured in barrel

→

Mold Temperature

54 – 93 °C

Measured, not set

→

Injection Pressure

69 – 124 MPa

Free-flow check valve

→

Molding & Cooling

Full-round runners Ø 5–6 mm

Gate ≥ 5 mm · 100+ ton clamp

Process notes: Use a metering screw with 18:1–24:1 L/D ratio, 40% feeding, and a large open nozzle to minimize shear. Avoid overheating above 270 °C to prevent carbonization. Purge with PE or PP before shutdown; do not leave long-glass melt in the barrel.

Performance-Driven Solutions

LFT-G^® PA6 LGF30 is engineered for high-load, high-temperature, and impact-critical applications across multiple industries.

Engine Covers

High HDT (208 °C) and creep resistance allow PA6 HLGF30 to replace metal, reducing weight while withstanding under-hood thermal cycling and preventing warpage.

Industrial Gears

PA6 HLGF30 has exceptional impact strength (34 kJ/m²) and wear resistance, ensuring reliable torque transmission, reducing noise and extending service life in heavy-duty machinery.

Electrical Connectors

Low creep and dimensional stability maintain consistent contact pressure across temperature fluctuations, preventing signal loss and intermittent failures.

FAQ

Q: What is the difference between PA6 LGF30 and PA6 GF30?

A: PA6 LGF30 uses long continuous glass fibers, while PA6 GF30 uses short milled fibers. Compared to short-fiber grades, PA6 LGF30 has 89% higher impact strength, 27% higher flexural modulus, and better heat resistance and creep performance, making it more suitable for load-bearing structural parts.

Q: What is the heat resistance temperature of PA6 LGF30?

A: Per the ISO 75-2 standard, PA6 LGF30 has a heat deflection temperature (HDT) of 208°C at 1.8 MPa. It maintains stable performance for long-term use within -40°C to 120°C, and can withstand short-term peak temperatures up to 180°C.

Q: What drying conditions does PA6 LGF30 need for injection molding?

A: Dry PA6 LGF30 at 80–90°C for 2–4 hours with a dehumidifying dryer before molding. Ensure moisture content is below 0.05% to avoid material degradation and surface defects on finished parts.

LFT team
