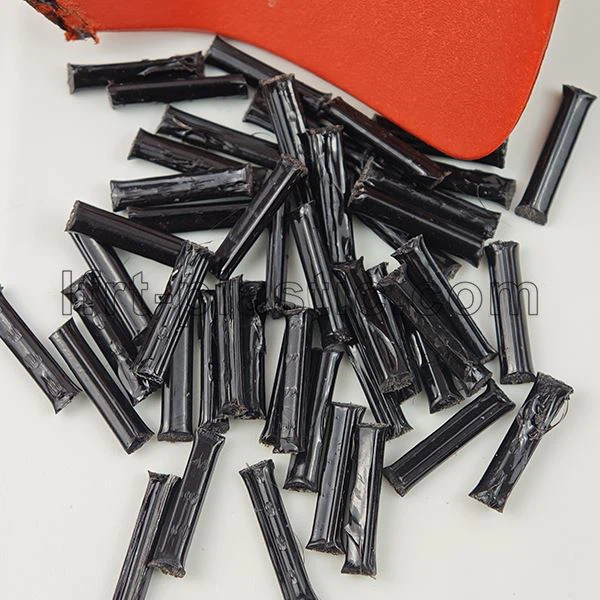

CF PPA: High-temperature Resistant Polymer
LCF PPA compound resin is a special engineering plastic composite material belonging to the high-temperature nylon family. It is produced through a special pultrusion process, where the PPA matrix is melt-bonded with long carbon fibers.
In the design of extreme conditions, engineers often face a dilemma: due to the sudden drop in rigidity of standard engineering plastics (such as GF PA66) under high temperature and high humidity, they have to compromise by using heavy metals. The emergence of LCF PPA material (long carbon fiber reinforced polyphthalamide) is precisely to break through this boundary. It is not a simple plastic modification, but a composite structural material with quasi-metallic properties, aiming to provide a unique solution for structural components that have strict requirements for weight reduction coefficient, high-temperature creep, and dynamic fatigue.
Why is "length" so crucial?
Traditional short carbon fibers (SCF) behave like "gravel" in the matrix and provide only limited reinforcement;Traditional short carbon fibers (SCF) behave like "gravel" in the matrix, providing only limited reinforcement; in contrast, the carbon fibers in LCF PPA compound resin typically retain a length of >1 mm (even reaching over 10 mm) in the final product.
The long carbon fibers intertwine with each other during the injection molding process, forming a self-supporting 3D fiber network. When subjected to external force impact, short fibers are prone to being pulled out or broken, resulting in brittleness; while long carbon fibers absorb huge impact energy through three stages: fiber fracture, detachment, and long-distance pulling out.
The mechanical performance of LCA PPA
In the trend of replacing steel with plastics, LCF PPA composite has demonstrated astonishing specific strength. Its density is lighter than that of aluminum alloys, but its tensile modulus can easily exceed 30 GPA.
What is even more crucial is its dynamic mechanical properties. Thanks to the unique fiber pull-out mechanism of long fibers, when the material is subjected to impact, the energy is dissipated in large amounts through the interface debonding and sliding between the fibers and the matrix. This makes the notch impact strength of LCF PPA plastic pellet several times that of traditional short carbon fiber materials, solving the inherent defect of carbon fiber reinforced materials, "high rigidity accompanied by high brittleness". At the same time, this internal network structure significantly inhibits the slip of polymer chain segments, endowing the material with excellent creep resistance and fatigue resistance, enabling it to cope with the harsh working conditions of high-frequency vibrations around the engine.
CF PPA: Thermodynamics and Environmental Tolerance
The semi-aromatic structure of the PPA matrix itself endows the material with extremely low moisture absorption rate and exceptional chemical resistance. Even in harsh environments such as high temperature and high humidity or exposure to oil-based chemicals, the mechanical properties of LCF PPA material show minimal degradation and magnificent dimensional stability.
What is particularly noteworthy is its linear thermal expansion coefficient (CLTE). In the direction of flow, the CLTE value of LCF PPA is extremely low and is very close to that of metal aluminum. This means that in scenarios involving metal inserts injection molding or precise mating, it can effectively prevent internal stress cracking or component jamming caused by thermal expansion and contraction differences. With a heat distortion temperature (HDT) of up to 250 °C or higher, LCF PPA becomes an ideal choice for withstanding the high temperatures in the automotive engine compartment.
The Economic Cost of Alternative Metals
Cancel secondary processing: After the die-cast aluminum parts are formed, they need to be deburred, undergo CNC machining for tapping, and undergo surface anti-corrosion treatment. LCF PPA composite injection molding is the finished product, achieving one-step net-shape manufacturing, with higher yield.
Ultra light weighting: The specific strength of carbon fiber is several times that of steel. Replacing aluminum with LCF PPA plastic granules usually enables a significant reduction in weight, which is crucial for electric vehicles (sustained range anxiety) and drones (payload anxiety).
Design flexibility: It enables the realization of complex thin-walled structures, reinforcement design, and even the integration of functional components (such as clasps, channels) for injection molding, thereby reducing assembly processes.
FAQ
Q: How does the dimensional stability of LCF PPA perform in high-temperature and high-humidity environments?
A: The PPA matrix belongs to semi-aromatic nylon and has a much lower water absorption rate than PA66. Combined with the extremely low linear thermal expansion coefficient (CLTE) of long carbon fibers (the flow direction is close to that of metals), LCF PPA exhibits excellent dimensional stability during wet heat cycles.
Q: What are the specific requirements for injection molding machines and molds when processing LCF PPA?
A: It is essential to attach great importance to preventing wear and maintaining the length of the optical fiber.
Q: Will there be any "floating fibers" problem on the surface of the part? How can it be solved?
A: Yes, long carbon fibers tend to cause rough surfaces (floating fibers). This is usually the case for structural components where the appearance is not of high importance. If you want to improve the appearance, you can adopt methods such as using higher mold temperatures.
For a long time, engineers have been forced to make reluctant compromises between the "heaviness of metal" and the "softness of plastic". The emergence of LCF PPA material marks the end of this era of compromise. It is not merely an alternative to aluminum alloy; it is also the key for you to break through design constraints and unleash the potential of the structure. When you are no longer constrained by weight or limited by high temperatures, what kind of future form will your product take? Now, let's use LCF PPA plastic pellet together to turn those "impossible" drawings into unbreakable realities.
