LCF30 CF30 PA66 Nylon 66 Composite
As industries such as automotive, new energy, industrial automation, and electrical equipment continue to pursue lightweight design, higher efficiency, and long-term reliability, traditional engineering plastics are increasingly challenged by higher loads, elevated temperatures, and complex structural requirements.
LCF PA66 (Long Carbon Fiber Reinforced Polyamide 66) has emerged as a high-performance composite material specifically developed to address these challenges. By combining the inherent thermal and mechanical stability of PA66 with long carbon fiber reinforcement, LCF PA66 compound resin delivers a unique balance of strength, stiffness, weight reduction, and durability, making it a preferred choice for metal replacement and advanced structural components.
What Is LCF30 PA66?

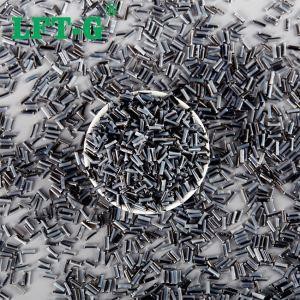

LCF30 PA66 plastic pellet is an advanced engineering thermoplastic produced by reinforcing polyamide 66 resin with 30% long carbon fibers using specialized compounding technology. Unlike conventional short-fiber reinforced nylons, long carbon fibers are retained throughout the molding process, forming a continuous internal reinforcement network within the polymer matrix.
This structural network enables more efficient load transfer, significantly improving mechanical performance, fatigue resistance, and dimensional stability under real working conditions.
Key material characteristics include:
- Long fiber length retention for enhanced structural integrity
- High stiffness and tensile strength at reduced weight
- Excellent thermal resistance and aging performance
- Suitability for complex, integrated injection-molded parts
Why Long Carbon Fiber Matters in PA66?
Traditional reinforced PA66 materials rely on short fibers, which primarily improve stiffness but offer limited resistance to fatigue and long-term load. In contrast, long carbon fibers create a load-bearing framework inside the material.
This makes LCF PA66 material particularly suitable for structural components, rather than purely cosmetic or low-load parts.
As a result, LCF PA66 composite provides:
Higher strength retention under continuous stress
Improved resistance to crack initiation and propagation
Better performance in vibration and cyclic loading environments
What Choose LCF30 PA66?
LCF30 PA66 Vs. SCF30 PA66
Fiber Structure: Long carbon fibers, forming a continuous load-bearing structure
Fiber Structure: Short carbon fibers, discrete reinforcement, discontinuous structure
Load Transfer: The load is effectively transmitted along the fibers
Load Transfer: The load is mainly borne by the resin
Long-term retention ability: Long-term service performance is stable
Long-term retention ability: The performance decays more rapidly over time
LCF30 PA66 is a structural-grade composite, while SCF30 PA66 is a stiffness-enhanced PA66 material. In comparison, LCF30 PA66 composite outperforms SCF30 PA66 plastic pellet in terms of overall performance.
Key Performance Advantages of LCF30 PA66
1. Exceptional Strength-to-Weight Ratio
LCF30 PA66 offers metal-like mechanical performance while maintaining the low density of engineering plastics. Compared with aluminum or steel components, parts made from LCF30 PA66 can achieve significant weight reduction without compromising structural integrity.
This advantage directly contributes to:
Improved energy efficiency
Lower system inertia
Easier handling and assembly
2. Superior Thermal Stability
PA66 is known for its excellent heat resistance, and long carbon fiber reinforcement further enhances its performance at elevated temperatures.
Continuous operating temperatures up to 150 °C
High stiffness retention under thermal load
Suitable for components near heat-generating systems
This stability ensures consistent performance in demanding environments such as powertrain surroundings and industrial equipment housings.
3. Fatigue and Impact Resistance
Thanks to the long carbon fiber structure, LCF30 PA66 compound resin demonstrates superior fatigue resistance and impact performance under repeated or dynamic loading conditions.
Longer service life
Reduced risk of sudden failure
Greater reliability in real-world applications
4. Outstanding Dimensional Stability
LCF30 PA66 material exhibits reduced thermal expansion and molding shrinkage compared to conventional reinforced nylons. This leads to exceptional dimensional consistency, even in large or complex molded parts.
Such stability is critical for:
Precision assembly components
Multi-fastener structural parts
Long-term service with minimal deformation
Manufacturing and Processing
Typical Applications of LCF PA66 Composite
Automotive and New Energy Vehicles
Motor housings and structural brackets, Battery system support components, Lightweight seat and front-end modules
Industrial Equipment
Load-bearing frames and supports, Automation equipment structural parts, High-stiffness connectors and mounts
Electrical and Electronic Applications
Structural housings for power modules, High-strength enclosures requiring dimensional precision, Components exposed to thermal cycling
our case
Engine compartment structural support
Customer pain points:
The metal brackets are heavy and do not facilitate the light weighting of the entire vehicle.
In the presence of high temperatures and vibrations, the rigidity of short-fiber PA66 significantly decreases.
There is a risk of assembly accuracy deviation after long-term use.
With the continuous reinforced structure formed by long carbon fibers, LCF30 PA66 maintains high rigidity while reducing the weight of the component by approximately 20%. Its creep rate significantly decreases under high-temperature conditions, enhancing the stability and durability during assembly, and reducing the need for later maintenance.
Internal structural components of the new energy electric drive system
Customer pain points:
Extremely sensitive to weight, yet it must also ensure structural rigidity
The electric drive system is subjected to continuous thermal load.
The metal solution is costly and involves complex processing.
LCF30 PA66 not only meets the requirement of high rigidity, but also takes into account lightweight and thermal stability. It achieves weight reduction without sacrificing structural strength, maintains structural stability under thermal cycling conditions, and effectively reduces the overall system cost.
Everything You Want to Know
LCF30 PA66 is engineered for structural reliability, lightweight design, and long-term performance in demanding industrial environments.
What is the core impact of a 30% long carbon fiber content on the material performance?
30% long carbon fiber can form a continuous load-bearing network, significantly enhancing the specific strength, rigidity and fatigue life, rather than just improving the surface performance.
Does the use of LCF30 PA66 help to reduce the system cost? Is the material performance stable under the thermal cycling conditions?
Reducing the number of parts and the subsequent processing requirements through integrated molding can help lower costs. The LCF30 PA66 can still maintain its structural integrity even under repeated temperature changes.
What are the key points to be noted when processing and molding LCF30 PA66?
It is necessary to control the shear force and properly design the gate and runner to maximize the retention of the advantages of the long carbon fiber structure.
