The Ultimate Strength & Toughness Solver

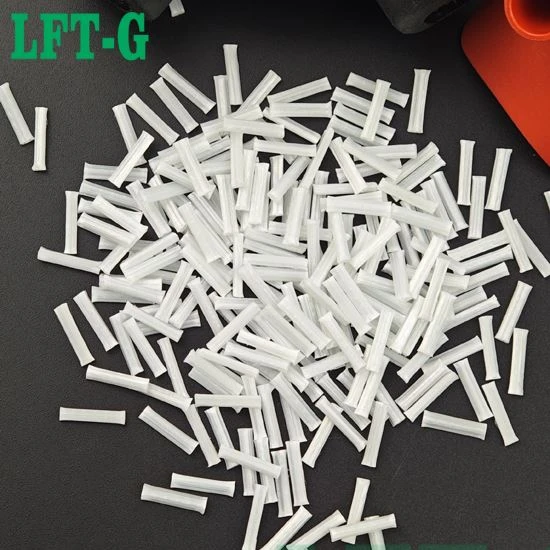

Engineers frequently struggle with materials that are either too soft, like pure TPU, or too brittle, like standard short-fiber reinforced plastics. LFT-G® TPU-NA-LGF50 completely breaks the traditional trade-off between strength and toughness. By infusing 50% continuous long glass fibers into a premium thermoplastic polyurethane matrix, it forms a robust internal 3D skeletal network during injection molding. This delivers metal-like rigidity while retaining the exceptional impact-absorbing flexibility and abrasion resistance inherent to TPU.
Typical Material Properties (LFT-G® TPU-NA-LGF50)
| Property | Standard | Value |
|---|---|---|
| Density | ISO 1183 | 1.60 g/cm³ |
| Tensile Strength | ISO 527 | 234 MPa |
| Tensile Modulus | ISO 527 | 14,000 MPa |
| Flexural Strength | ISO 178 | 325 MPa |
| Property | Standard | Value |
|---|---|---|
| Flexural Modulus | ISO 178 | 11,500 MPa |
| Charpy Notched Impact | ISO 179 | 46 kJ/m² |
| Elongation at Break | ISO 527 | 2.5 % |
| Mold Shrinkage | ISO 294-4 | 0.10 - 0.20 % |
Processing Guidelines for TPU LGF Resin
Pre-drying
80–100°C / 4–6h
Critical for TPU Matrix
Injection
Melt Temp: 220–260°C
Low Shear Processing
Tooling Settings
Mold Temp: 45–70°C
Large Gate Design
Engineered for Extreme Wear & Impact Resistance
Premium Safety Footwear Toe Caps
Standard steel toe caps are uncomfortably heavy and conduct freezing temperatures. Our TPU LGF50 provides identical crush protection with a 50 kJ/m² impact rating, drastically lightening the boot while offering superior insulation and rebound characteristics for workers in brutal environments.
Heavy Machinery Gears & Bearings
Industrial transmission components face constant frictional wear and extreme torque. The internal glass fiber skeleton minimizes anisotropic shrinkage (maintaining precise gear tooth geometry), while the TPU matrix acts as a permanent shock absorber, heavily reducing operational noise and eliminating premature cracking.
Alpine Winter Sports Equipment
Traditional plastics become dangerously brittle in sub-zero alpine conditions. TPU LGF50 retains its unparalleled flexibility and shatter resistance even in extreme cold, allowing manufacturers to create ultra-rigid yet highly responsive professional ski boots and snowboard bindings.
Request Technical Trial Sample & Quotation
Break the ultimate strength and toughness barrier with LFT-G® engineering composites. Contact our technical department today to request a physical trial sample or customized bulk pricing.
Request Technical Trial Sample
Email Inquiry: Candyhu@lfrtplastic.com
WhatsApp Directly: +86 13950095707
