Optimizing Stiffness & Toughness: Why PP LGF30 Beats Generic PP GF30
Engineering design teams targeting automotive and structural industrial applications frequently specify 30% glass fiber reinforced polypropylene. However, standard short-fiber PP GF30 often creates severe processing hurdles, including anisotropic part warping, low impact toughness, and premature fatigue failure. LFT-G® PP LGF30 overcomes these issues. Utilizing our proprietary pultrusion compounding technology, we embed continuous glass fiber strands within a premium polypropylene matrix. This process forms an internal 3D structural skeleton, providing a perfect balance of stiffness and impact durability. For high-volume automotive and industrial moldings, PP LGF30 serves as a cost-effective, high-reliability upgrade from traditional short-fiber compounds.
Key Specifications (PP LGF30 Structural Grade)
Typical Material Properties (LFT-PP-LGF30-BG03)
The physical values detailed below represent typical metrics recorded inside the LFT-G® Polymer Characterization Facility under Dry-As-Molded (DAM) conditions. Testing complies strictly with verified ISO and ASTM standards to ensure absolute technical data verification.
Mechanical Testing Profile
| Property | Test Standard | Value (DAM State) |
|---|---|---|
| Tensile Strength | ISO 527 | 115 MPa |
| Tensile Modulus | ISO 527 | 6,800 MPa |
| Flexural Strength | ISO 178 | 155 MPa |
| Flexural Modulus | ISO 178 | 5,500 MPa |
| Notched Izod Impact | ISO 180 | 32 kJ/m² |
Thermal & Physical Analysis
| Property | Test Standard | Value |
|---|---|---|
| Density | ISO 1183 | 1.12 g/cm³ |
| HDT (0.45 MPa) | ISO 75 | 152 °C |
| HDT (1.80 MPa) | ISO 75 | 150 °C |
| Mold Shrinkage | ISO 294-4 | 0.15 - 0.30 % |

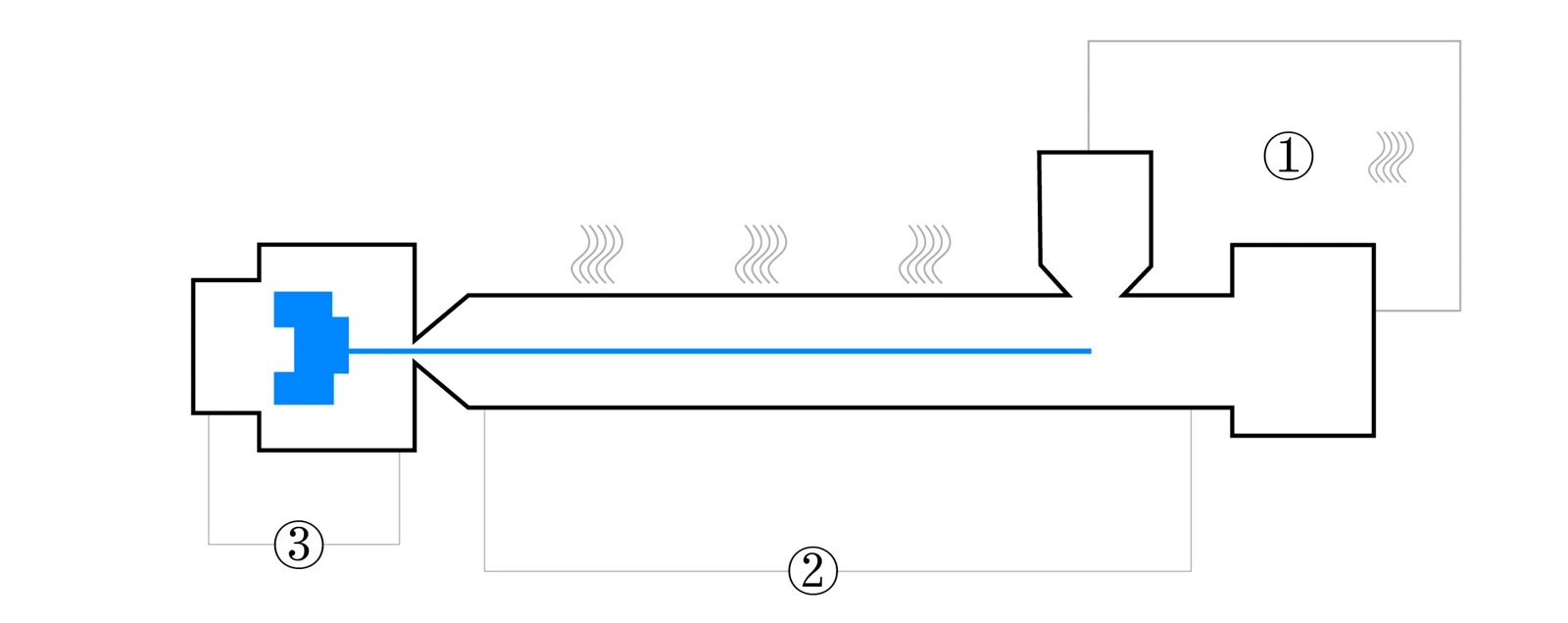

Processing Guidelines – Injection Molding
Pre-drying
80–90°C / 2–4h
Moisture < 0.1%
Injection
Melt 200–230°C
Mold 40–70°C Pressure 80–120 MPa
Tooling
Low-compression screw
Full round runners (Ø5–6mm) L/D 18:1–22:1
Multi-Industry Application Cases
Automotive Inner Door Module Carriers
Integrated door panel carriers require a balanced stiffness-toughness profile to support electric window motors, wire harnesses, and speakers without warping. LFT-G® PP LGF30 Black replaces heavy steel frames and weak short-fiber PP, facilitating modular door assemblies and providing deep NVH acoustic damping.
Dashboard & Instrument Panel Carrier Frames
IP carriers hold dashboard instrumentation, air ducts, and airbags. They require high impact safety characteristics, especially during airbag deployment under sub-zero temperatures. The 30% long glass fiber matrix prevents dynamic shatter, guaranteeing predictable impact energy management.
Industrial Pump Impellers & Shrouds
Components operating in water-contact environments require hydrolysis protection and low dimensional expansion. Unlike polyamides (nylons) that absorb moisture and lose stiffness, PP LGF30 maintains its physical dimensions and mechanical properties permanently in humid industrial fluid networks.
Field Proven Case Study
Challenge
An automotive component supplier in the Middle East faced structural failures with a cooling shroud. The original part made of short glass reinforced polyamide (PA6-GF30) absorbed ambient humidity during summer, dropping its stiffness by 40% and warping. This caused fan interference, coolant leaks, and high warranty costs.
Solution
The engineering team replaced the PA6-GF30 shroud with an injection-molded structure using LFT-G® PP-LGF30-NG03. Because polypropylene has a near-zero water absorption index, the long fiber skeleton maintained high rigidity and structural integrity under humid conditions.
Results
✅ Zero warping & moisture swell (moisture absorption < 0.05%)
✅ 15% weight reduction (PP density is 1.15 g/cm³ vs PA6's 1.36 g/cm³)
✅ 25% lower manufacturing costs (eliminating nylon pre-drying energy)
✅ Zero field failures recorded (over 24 months of service in heat)
↗How LFT PP Replace PA6 GF30 For Hot-Humid Automotive Cooling Shroud
