LFT PP LGF20: The Toughness Upgrade Your PP GF20 Parts Need
Many designs specify a standard "PP GF20" for its balance of cost and stiffness. But what happens when those parts are dropped, impacted, or used in the cold? They often fail. LFT-G® PP LGF20-NG02C is the engineered solution. It is a high-performance long-fiber composite that takes the concept of a 20% glass-filled PP to the next level by pairing long glass fibers with a high-impact copolymer polypropylene (Copo PP) matrix.
The 20% long glass fiber content provides a significant boost in strength and creep resistance over unfilled plastics, while the copolymer base ensures phenomenal toughness and energy absorption, preventing brittle fracture. This grade offers the best processability in our LFT-PP family, making it ideal for molding complex, thin-walled parts with intricate features like snap-fits and living hinges, which must endure repeated use. It is the perfect choice for child safety seat components, power tool housings, and any application where durability is paramount.
This material is engineered for parts that are meant to bend, not break, delivering resilience and reliability where standard composites fall short.

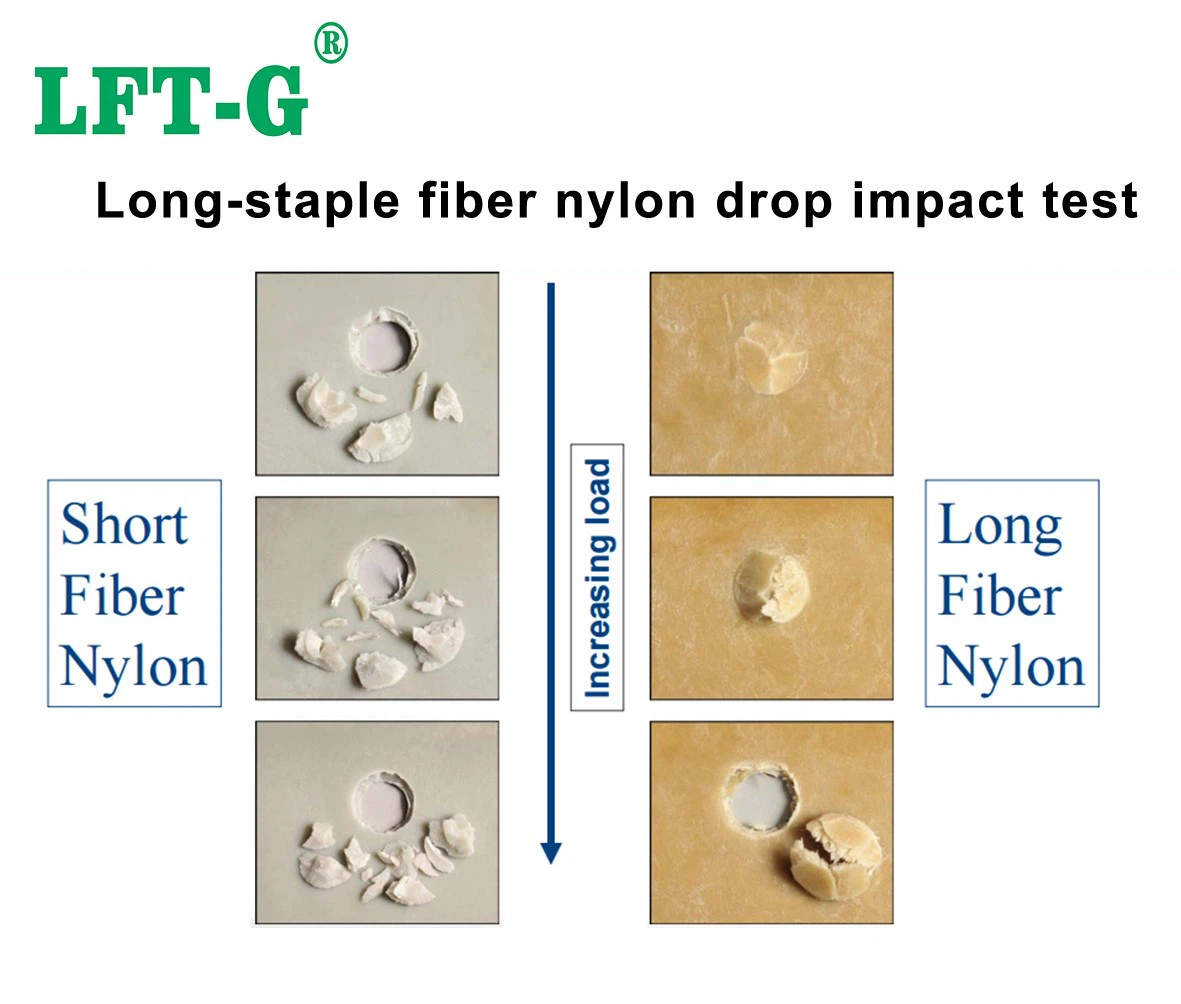

Why Long Fiber Prevents Catastrophic Failure
Under impact, a micro-crack forms. The journey that crack takes determines whether a part fails or survives. The fiber structure makes all the difference.
Standard GF20 Material (Short Fiber)
The crack easily navigates around the small, disconnected short fibers. There's nothing to stop its path, leading to rapid, brittle fracture and complete part failure.
LFT-G® LGF20 Material (Long Fiber)
The crack runs into the robust, interlocking long-fiber network. The network forces the crack to find a much longer, more tortuous path, dissipating the impact energy and arresting the crack's growth. The part survives.
Technical Data Sheet: LFT-G® PP LGF20-NG02C
Typical values for our maximum toughness copolymer grade. Data is for reference only.
| Property | Test Method | Units | Typical Value |
|---|---|---|---|
| Long Glass Fiber Content | ASTM D5630 | % by weight | 20 |
| Density | ASTM D792 | g/cm³ | 1.02 |
| Tensile Strength | ASTM D638 | MPa | 108 |
| Flexural Modulus | ASTM D790 | GPa | 4.8 |
| Notched Izod Impact Strength (@23°C) | ASTM D256 | kJ/m² | 36 |
| Heat Deflection Temperature (@1.82 MPa) | ASTM D648 | °C | 156 |
Case Study: Handheld Industrial Barcode Scanner Housing
Challenge
A logistics technology company was experiencing high warranty return rates for their new warehouse barcode scanner. The housing, made from a standard PC/ABS, was cracking when dropped onto concrete floors, especially in unheated warehouses during winter. The complex geometry, including a thin handle and battery-door snap-fits, also suffered from inconsistent molding.
Solution
Our team recommended a switch to LFT-G® PP LGF20-NG02C. Its copolymer base provided far superior drop-impact toughness, particularly at low temperatures. The 20% long glass fiber reinforcement gave the housing the necessary rigidity without making it brittle. The material's excellent flow characteristics allowed the complex handle and snap-fit features to be molded with high precision and repeatability.
Result
After adopting the LFT material, hardware failure rates due to cracked housings plummeted by over 95%. The improved mold-fill consistency reduced production scrap rates by 15%. The scanner was successfully certified for a higher drop-rating, becoming a key competitive advantage and significantly boosting its market reputation for reliability.
Where Durability and Design Freedom Meet
Child Safety Seat Shells
An application where high energy absorption is critical for safety. The material's toughness and ability to be molded into complex, protective shapes makes it a top choice for these life-saving products.
Office Chair Bases
Replaces die-cast metal or less durable plastics. It provides the fatigue and impact resistance to pass BIFMA standards while allowing for modern, complex designs that are both strong and lightweight.
Protective Sporting Goods
Ideal for products like shin guards, helmet shells, or skateboard decks. The material's ability to absorb and dissipate high-energy impacts repeatedly without cracking provides enhanced safety for athletes.
Key Questions Answered
1. What is the main difference between PP GF20 and LFT PP LGF20?
A: The critical difference is fiber length. In standard PP GF20, the short glass fibers (<1mm) act as simple reinforcement. In LFT PP LGF20, the long fibers (>10mm) create an internal skeletal network. This network is far more effective at dissipating impact energy, which is why our LFT material has dramatically higher toughness and impact strength than any short-fiber equivalent.
2. When should I choose LGF20 over a higher glass content like LGF30?
A: Choose LGF20 when your primary requirement is maximum toughness and impact resistance, especially in parts with thin walls or complex geometries. The lower fiber content gives it the highest impact strength and best melt flow in the LFT-PP family. If your design requires more stiffness and load-bearing capability, then LGF30 would be the better choice.
3. Can this material be used for living hinges?
A: While unfilled polypropylene is the best material for traditional living hinges, the exceptional toughness and controlled fiber orientation of LFT-G® PP LGF20 can allow for the design of robust, durable integral hinges. Careful design and gating considerations are essential, and we recommend consulting our engineering team for such applications to ensure millions of cycles without failure.
Ready to Engineer the Next Breakthrough?
Elevate your product's performance with the proven strength and versatility of LFT-G® PP LGF20 Copolymer. Contact our material specialists today to discuss your project or request a material sample.
