PA12 GF30 Plastic Pellets

Injection molding PA12 GF30 Plastic Pellets

Injection molding is an efficient and high-precision plastic processing technology. The plastic materials used in injection molding are also a type with significant advantages. Long-fiber materials are one of the materials that are chosen by more customers.

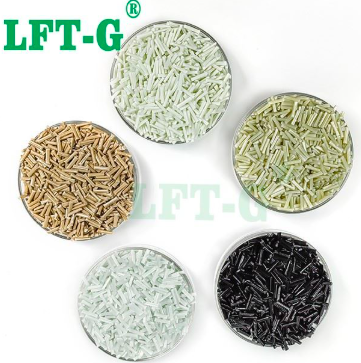

LGF30 PA12 Compound Resin

The long-fiber materials of LFT-G^® are generally divided into two types: long glass fiber and long carbon fiber.

Long glass fiber nylon 12 material is a high-performance engineering plastic, which is formed by compounding long glass fibers (typically ≥5 mm in length) with a nylon 12 (PA12) matrix. It combines the excellent properties of nylon 12 with the reinforcing effect of glass fiber and is widely used in fields with high requirements for strength, fatigue resistance and lightweight.

Long fiber materials have different contents, ranging from 20% to 60%. Let's learn about this 30% long glass fiber nylon 12 material (LGF30 PA12).

Nylon 12, as the matrix of this composite material, is a high-performance polyamide polymerized from dodecanlactam. Compared with the common nylon 6 and nylon 66, nylon 12 shows unique advantageous characteristics. Water absorption is an eternal topic for nylon materials, and nylon 12 has set a new benchmark in this regard. It has a lower water absorption rate, better flexibility and good low-temperature resistance.

The application scope of LGF30 PA12 Compound Resin

From a performance perspective, long glass fiber nylon 12 demonstrates a series of impressive properties. In addition to the high mechanical strength and fatigue resistance mentioned earlier, its low density makes it an ideal choice for lightweight design, and in some applications, it can replace metal parts to achieve weight reduction. Meanwhile, its excellent chemical resistance and low-temperature resistance further expand its application range.

The automotive industry is one of the most important application fields of long glass fiber nylon 12. In the fuel system, it is widely used to manufacture fuel pipes and brake oil pipes, thanks to its exceptional oil resistance and low water absorption rate. In terms of structural components, parts such as engine mounts and battery casings are also increasingly using this material to achieve lightweight while maintaining the required mechanical strength. With the rapid development of new energy vehicles, the application of this material in key components such as battery module casings is becoming increasingly widespread. Its exceptional insulation performance and impact resistance provide a reliable guarantee for such applications.

In the field of industrial equipment, long glass fiber nylon 12 material also plays a significant role. After high-load components such as gears and bearings are made of this material, not only excellent wear resistance and fatigue resistance are achieved, but also significant weight reduction effects are realized. Seals in hydraulic systems also benefit from the pressure resistance and dimensional stability of this material, successfully replacing traditional metal components in many situations.

The consumer goods and medical fields have also begun to recognize the value of this material. In terms of sports equipment, from snowboard bindings to bicycle parts, the high strength and lightweight characteristics of long glass fiber nylon 12 material have brought new possibilities to product design.

In the medical field, appropriately modified long glass fiber nylon 12 material can be used to manufacture catheters and certain surgical instruments, and the casings of some medical devices can also use this material. Its biocompatibility provides new material options for the innovation of medical devices.

The story of long-fiber nylon 12 material is an innovative epic about the continuous breakthroughs in the ultimate performance of materials. This composite material continues to expand the possibilities of engineering plastics.

Material comparison

Compared with other common engineering plastics, long glass fiber nylon 12 shows unique advantages. Compared with nylon 12 reinforced with short glass fibers, its mechanical properties and fatigue resistance are significantly better. Compared with nylon 66 reinforced with long glass fibers, it has a lower water absorption rate and better low-temperature resistance. Of course, this excellent performance combination also brings a relatively high cost, which is determined by the high price of the nylon 12 matrix material itself.

The role in environmental protection

From the perspectives of environmental protection and future development, long glass fiber nylon 12 material shows a promising future. Although this material can be recycled, it should be noted that fiber breakage will lead to a decline in performance. In terms of innovative materials, although carbon fiber reinforced PA12 can offer more outstanding performance, its cost has also increased significantly accordingly. At present, long glass fiber nylon materials can promote the sustainable development of the materials' industry.

When we look to the future, the development prospects of long glass fiber nylon 12 are exciting. This material revolution led by long glass fiber nylon 12 is quietly changing our industrial landscape. It may not attract the public's attention like some high-tech products, but it actually enhances the performance and reliability of countless products. With the advancement of characterization techniques and the development of computational materials' science, our understanding of this composite material is constantly deepening. These breakthroughs in fundamental research will surely drive the development of long glass fiber nylon 12 towards more superior performance and richer functions, and showcase a better style on the stage of the future.
