50% Long Fiber Reinforced HDPE
From general polyethylene to structural polyethylene materials
LGF50 HDPE is a high-performance thermoplastic composite material based on high-density polyethylene (HDPE), with approximately 50% long glass fibers serving as the reinforcing framework. It is not simply adding glass fibers to HDPE; instead, it forms a more continuous reinforcing network within the material through the long glass fibers, enabling HDPE to evolve from the traditional flexible, chemical-resistant plastic to a high-strength, high-load-bearing, and deformation-resistant structural material.
LGF50 HDPE, Addressing Two Types of Demands
Analysis of LGF50 HDPE
The core of LGF50 HDPE is not to achieve the highest performance in a single aspect, but to combine the advantages of two originally quite different materials:
- HDPE matrix
Provides toughness, chemical resistance, water resistance, low water absorption, corrosion resistance, and good environmental adaptability.
- 50% long glass fiber
Provides high rigidity, high strength, resistance to bending deformation, resistance to creep, and structural load-bearing capacity.
Ultimately, it results in:
The environmental tolerance of HDPE + the structural reinforcement ability of long glass fibers = LGF50 HDPE
What Makes LGF50 HDPE Stand Out?
- Creep resistance | Enhance long-term load-bearing stability
- Good dimensional stability | Reduces long-term deformation and dimensional deviation
- High impact resistance | Resisting collisions, drops and vibrations
- Good chemical resistance | Adaptation to acidic, alkaline, and salty environments
- Lightweighting | Reduces structural weight compared to metals
LGF50 HDPE Vs Other

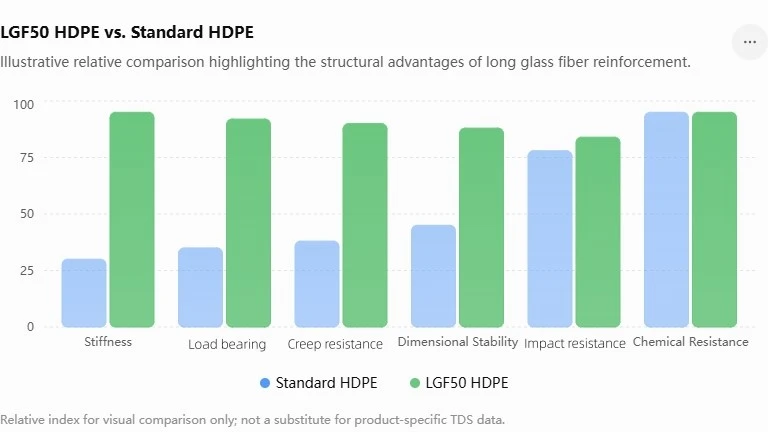

LGF50 HDPE vs Ordinary HDPE
The main advantages of ordinary HDPE are its toughness, chemical resistance and environmental stability, but its structural rigidity is relatively limited.
LGF50 HDPE achieves an enhanced structure through the incorporation of 50% long glass fibers:
- Regular HDPE → High toughness, chemical resistance, low water absorption
- LGF50 HDPE → High toughness + High rigidity + High load-bearing capacity + Better creep resistance

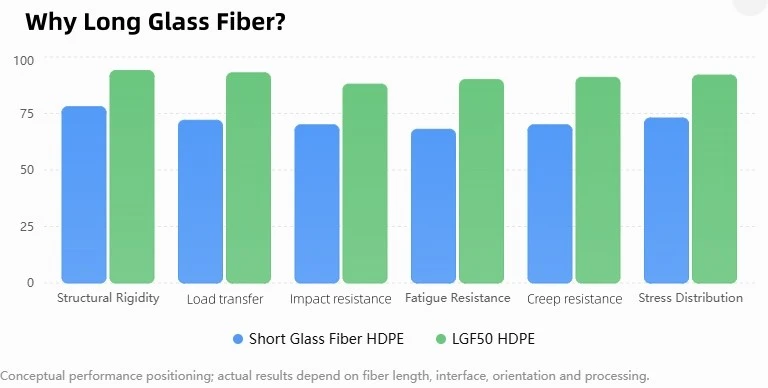

LGF50 HDPE vs Short Fiber HDPE
Both are HDPE reinforced with glass fibers, but the reinforcement mechanisms are different.
Short glass fibers can enhance the rigidity and strength of the material. However, due to their shorter length, their stress transmission and structural continuity are limited.
Short glass fibers are more focused on "improving material performance", while long glass fibers are more focused on "constructing structural performance".
What Can LGF50 HDPE Do?
The true application value of LGF50 HDPE lies in its specific components.
Why Choose LGF50 HDPE?
Choosing LGF50 HDPE is not usually due to the "50% glass fiber" figure itself, but because your product has several problems simultaneously.
- Regular HDPE is too soft → LGF50 provides high rigidity and high modulus.
- Short glass fibers cannot meet long-term structural loads → The long fiber reinforced network provides better structural support.
- Metal is too heavy → LGF50 HDPE offers a lightweight plastic structure solution.
- Engineering plastics absorb water and affect performance → HDPE has a very low water absorption characteristic.
- Complex part structures and many assembly parts → Injection molding can integrate ribs, installation holes, snap-in parts and support structures into a unified design.
Product Customization
LGF50 HDPE is not a fixed material system with a single specification. It can be adjusted specifically for different applications.
Base material grade: Different HDPE systems can be selected based on fluidity and processing requirements.
Color: Natural color / Customizable.
Weathering system: UV-stabilized system can be considered for outdoor applications.
Functional modification: The weather resistance, impact resistance, processing and other properties of the material can be adjusted according to specific applications.
Therefore, for the same LGF50 HDPE, the final optimal formulation and processing window for different applications may also be different.
FAQ
Q: What material is LGF50 HDPE?
A: LGF50 HDPE is a high-performance thermoplastic composite material based on HDPE, reinforced by approximately 50% long glass fibers. It is mainly used to enhance the strength, rigidity, creep resistance and dimensional stability of HDPE.
Q: What is the main difference between LGF50 HDPE and ordinary HDPE?
A: The main difference lies in the rigidity of the structure and the bearing capacity. Ordinary HDPE is more inclined towards toughness, chemical resistance and environmental applications, while LGF50 HDPE further enhances high rigidity, high strength and long-term bearing capacity.
Q: Is LGF50 HDPE resistant to water?
A: The water resistance is extremely good. The HDPE material itself has an extremely low water absorption rate, so LGF50 HDPE is suitable for humid, water-contact and outdoor environments.
LGF50 HDPE is highly rigid, highly load-bearing, and resistant to creep. At the same time, it retains the excellent water resistance, chemical resistance and environmental adaptability of HDPE.
This makes LGF50 HDPE a long glass fiber reinforced material suitable for structural components, semi-structural components, and some applications as a substitute for metals.
