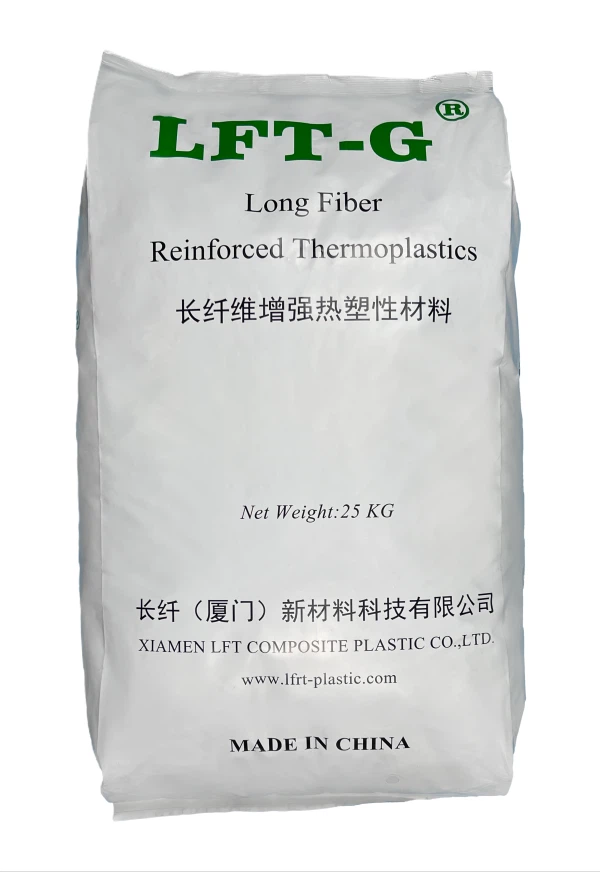

30% Long Carbon Fiber Reinforced Nylon 6 (LFT-PA6-CF30-BC03B)
This is the intersection of strength and technology. Our LFT-PA6-CF30-BC03B composite leverages the high-performance Nylon 6 (PA6) matrix and reinforces it with 30% long carbon fiber. The result is a high-performance material engineered for true metal replacement, offering exceptional stiffness, high strength, and superior thermal performance in a lightweight package. In short, this page details an engineering solution for ultimate lightweighting and performance (LFT-PA6-CF30-BC03B) - blending the structural power of 30% long carbon fiber with the strength and thermal resistance of a Nylon 6 matrix, ideal for next-generation structural auto parts, industrial robotics, and professional sporting goods.
Q: What is carbon fiber nylon 6?
A: It is a high-performance composite where a strong and heat-resistant Nylon 6 (PA6) polymer is reinforced with carbon fiber. Our long carbon fiber grade (LFT-PA6-CF30) creates an exceptionally stiff and strong material, making it a powerful choice for metal replacement in demanding auto parts and industrial robotics.
Q: What are the advantages of PA6 CF30?
A: The primary advantage is an incredible stiffness-to-weight ratio. It delivers the rigidity of aluminum at a significantly lower weight, along with excellent strength, good thermal performance, and the design freedom of injection molding. It bridges the gap between high-end glass fiber composites and more expensive materials.
Q: Is carbon fiber nylon conductive?
A: Yes, carbon fiber composites like LFT-PA6-CF30 are electrically conductive. This makes them an excellent choice for applications requiring EMI/RFI shielding, such as electronics housings, and for preventing static discharge. This property should be considered during the design phase of any electrical application.
Choosing Your Performance Tier: An Upgrade Path
Standard Plastics
(e.g., PP, ABS)
Good for general purpose, non-structural use.
Glass Fiber Composites
(e.g., PA6-GF30)
Good strength and stiffness for structural parts.
Carbon Fiber Composite
(LFT-PA6-CF30)
Ultimate choice for max stiffness-to-weight & metal replacement.
Case Study: Automotive Cross-Car Beam
The Challenge
An automotive OEM was designing a new electric vehicle and needed to significantly reduce the weight of the instrument panel assembly. The core structural component, the cross-car beam, was traditionally made from magnesium or a multi-piece steel assembly. The challenge was to find a thermoplastic composite that could match the high stiffness and load-bearing requirements of the metal beam while enabling a single-piece, lightweight design.
The Solution: LFT-PA6-CF30-BC03B
Our 30% long carbon fiber Nylon 6 composite was the breakthrough solution. Its exceptional modulus (~19,000 MPa) provided the rigidity needed to support the entire instrument panel, airbag system, and steering column without flex. The long fiber structure also provided excellent creep resistance, ensuring long-term dimensional stability. By using injection molding, the OEM could integrate numerous brackets and attachment points directly into the beam, drastically simplifying the assembly process.
Result: A 45% weight reduction compared to the magnesium beam, consolidation of 10 separate parts into one, and superior NVH (vibration damping) performance.
Technical Specifications (Grade: LFT-PA6-CF30-BC03B)
| Property | Test Method | Value |
|---|---|---|
| Density | ISO 1183 | 1.24 g/cm³ |
| Tensile Modulus | ISO 527 | 22,500 MPa |
| Tensile Strength | ISO 527 | 231 MPa |
| Notched Izod Impact (23°C) | ISO 180 | ~45 kJ/m² |
| Heat Deflection Temp (1.8 MPa) | ISO 75 | 208 °C |
| Water Absorption (24hr) | ISO 62 | ~0.5% |
Download Complete LFT PA6 CF30 Data Sheet PDF
Applications Across Industries
Automotive
Ideal for large, lightweight structural parts where stiffness is critical for safety and performance.
- ● Instrument Panel Carriers
- ● Seat Structures
- ● Sunroof Frames
Industrial Automation & Robotics
The high stiffness-to-weight ratio allows for faster and more precise movements with lower inertia.
- ● Robotic Arms & End Effectors
- ● High-Speed Grippers
- ● Machine Vision Camera Housings
Sporting Goods & Recreation
Delivers the performance athletes demand for a competitive edge, in a durable, impact-resistant form.
- ● High-End Bicycle Frames
- ● Hockey Stick Shafts
- ● Performance Archery Bow Risers
Bridge the Gap Between Plastic and Metal
Harness the power of carbon fiber and the versatility of Nylon 6. Contact our engineering team to explore how LFT-PA6-CF30 can redefine performance in your next project.
