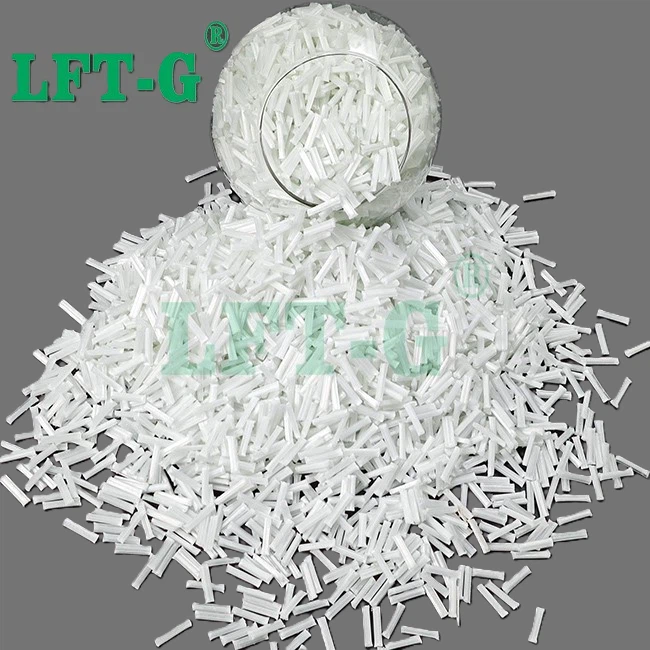

LFT-G® Long Glass Fiber Reinforced Polypropylene for Automotive Parts
Driving Innovation: The Versatile Strength of LGF PP for Automotive Components
The automotive industry constantly seeks advanced materials to enhance vehicle performance, safety, and efficiency. Long Glass Fiber Reinforced Polypropylene (LGF PP) has emerged as a leading solution, enabling innovative designs and replacing traditional materials like metals. **LFT-G® LGF PP** composites offer an exceptional combination of lightweighting, high strength, and durability, making them ideal for a wide range of automotive parts, from structural components to interior and exterior applications. By embedding continuous long glass fibers within a high-quality polypropylene matrix, LFT-G® LGF PP achieves significantly improved mechanical properties compared to conventional short fiber reinforced plastics. This unique structure provides superior stiffness, impact resistance, and dimensional stability. Whether used for instrument panels, door modules, seating structures, underbody shields, cooling system components, or front-end carriers, LFT-G® LGF PP allows automotive manufacturers to achieve substantial weight reduction without compromising performance or safety. The material's excellent moldability also facilitates the consolidation of multiple parts into complex, integrated components, streamlining manufacturing processes and reducing assembly complexity. Furthermore, LGF PP exhibits good resistance to many automotive fluids and environmental factors, contributing to the long-term reliability of vehicle components.
Key Advantages of LFT-G® LGF PP for Diverse Automotive Applications
- Significant Lightweighting: The low density of PP combined with the high strength-to-weight ratio of long glass fibers enables substantial mass reduction in automotive parts, improving fuel efficiency and EV range.
- Enhanced Structural Performance: Delivers high strength, stiffness, and creep resistance, making it suitable for load-bearing and semi-structural automotive components.
- Superior Impact Absorption: The long fiber network effectively dissipates impact energy, enhancing crashworthiness and part durability.
- Excellent Dimensional Stability: Maintains precise part geometry and tolerances across varying temperatures, humidity, and mechanical loads, crucial for consistent fit and function.
- Good Chemical and Environmental Resistance: Resists exposure to automotive fluids, road salts, water, and temperature extremes encountered in various vehicle locations.
- Noise and Vibration Reduction (NVH): The material structure can contribute to dampening vibrations, leading to a quieter and more comfortable cabin experience.
- Design Flexibility and Manufacturing Efficiency: Excellent moldability allows for complex part consolidation, reducing tooling costs and assembly time.
By choosing **LFT-G® LGF PP** for your automotive parts, you are partnering with a material that empowers innovation across your vehicle platforms. Our range of specialized LFT PP grades, with varying fiber lengths and glass content (e.g., LGF20, LGF30, LGF40, LGF50), allows for tailoring material properties to specific application requirements, from highly structural components to aesthetic parts. Explore the possibilities of lightweighting, enhanced performance, and streamlined manufacturing with LFT-G® LGF PP.
For more technical data on representative LGF PP grades for automotive, please refer to the specification below, or
LFT-G® PP LGF30 Technical Data Sheet for Automotive Parts
This document provides technical data for a 30% Long Glass Fiber reinforced Polypropylene (LFT-G® PP LGF30) material, representing typical properties suitable for a wide range of automotive components. This grade offers a balanced combination of mechanical performance, lightweighting, and resistance to automotive environments. Specific property requirements for individual parts may necessitate different LFT PP grades (e.g., varying fiber content) or material formulations. The data presented here is based on typical values obtained from international material suppliers and standards. Please refer to the specific datasheet of your program for precise LFT material values.
Mechanical Properties
| Property | Value | Unit | Test Standard |
|---|---|---|---|
| Tensile Strength | 100-150 | MPa | ISO 527-1 |
| Tensile Modulus | 4000-6000 | MPa | ISO 527-1 |
| Elongation at Break | 1.5-2.5 | % | ISO 527-1 |
| Flexural Strength | 150-200 | MPa | ISO 178 |
| Flexural Modulus | 3500-5500 | MPa | ISO 178 |
| Notched Izod Impact Strength (+23°C) | 40-57 | kJ/m² | ISO 180/1A |
| Notched Izod Impact Strength (-30°C) | 39-55 | kJ/m² | ISO 180/1A |
Thermal Properties
| Property | Value | Unit | Test Standard |
|---|---|---|---|
| Melting Temperature | 210-250 | °C | ISO 11357 |
|
Heat Deflection Temperature (HDT/A, 1.8 MPa) |
150-160 | °C | ISO 75-1 |
| Coefficient of Linear Thermal Expansion | 5-8 | x 10-5/K | ISO 11359 |
Other Properties
| Property | Value | Unit | Test Standard |
|---|---|---|---|
| Density | 1.11-1.13 | g/cm³ | ISO 1183 |
| Flammability (UL 94) | HB | - | UL 94 |
| Moisture Absorption (24 hours) | <0.05 | % | ISO 62 |
| Shrinkage Rate (Mold Shrinkage) | 0.7-1.2 | % | ASTM D-955 |
| UV Resistance (Weathering) | Good (with appropriate stabilizers) | - | ISO 4892 |
Chemical Resistance (Typical)
LFT-G® PP LGF30 exhibits good to excellent resistance to a range of substances commonly found in automotive environments:
- Water and Humidity - Excellent
- Road Salts - Excellent
- Coolants (Glycol-based) - Good
- Engine Oils and Greases - Good
- Fuels (limited contact) - Fair to Good
- Common Cleaning Agents - Good
Processing Information (Typical)
Recommended processing conditions for LFT-G® PP LGF30 for injection molding of automotive parts:
- Melt Temperature: 220-250 °C
- Mold Temperature: 73-90 °C
- Injection Speed: Medium (optimized for fiber length retention and part complexity)
- Holding Pressure: Optimized for dimensional accuracy and structural integrity
Notes and Supplementary Information:
Data Source: This data is compiled based on typical values for PP LGF30 from international material manufacturers and standards. Specific property requirements for fatigue, creep, or long-term environmental exposure will vary depending on the exact automotive part and application. **LFT-G® PP LGF30 provides a strong foundation for lightweighting and performance enhancement in a wide variety of automotive components due to its balance of mechanical properties, thermal performance, and chemical resistance. Its processability and cost-effectiveness make it a versatile choice for the automotive industry.** For applications requiring higher strength, stiffness, or heat resistance, other LFT PP grades (e.g., LGF40, LGF50) or alternative LFT materials (e.g., LFT PA6) may be considered. Please consult specific automotive industry standards and regulations. For precise and specific data for your program, please consult the datasheet provided by your material supplier.
Download Complete LFT Data Sheet PDF
