Name: China LFT-G® PP LGF40: Advanced Long Glass Fiber Composite For Structural Applications Factory, Manufacturers and Suppliers - LFT-G
Brand: LFT-G
SKU: 262509661

LFT-G® PP LGF40: Advanced Long Glass Fiber Composite For Structural Applications

Details

LFT-G® PP LGF40 is a reinforced thermoplastic that is made up of Copo polypropylene and 40%long glass fibers.
Features: High strength, high impact. Weather resistance, good durability
Application: Auto part, sport part, home appliance product.

Material Engineering Breakthrough

Composite Architecture

Our PP LGF40 combines isotactic polypropylene with 40% long glass fibers (12-15mm length) through patented pultrusion technology:

Fiber-matrix bonding strength: 28MPa (ASTM D2344)
Fiber orientation control: ±5° deviation
Moisture absorption: <0.05% (ISO 62)

Production Excellence

Manufactured under ISO 9001-certified process with:

8-zone temperature control (190°C-230°C)
Real-time viscosity monitoring (±2% accuracy)
Closed-loop fiber feeding system

Certified Automotive Implementations

Front-End Modules

Weight reduction: 30-40% vs steel
Integrated 10+ components into single piece
Cycle time: 45 seconds (30% faster than PA66)

Battery Enclosures

IP67 protection rating
UL94 V-0 flame retardancy (1.6mm thickness)
Chemical resistance to pH 3-11 solutions

Engine Covers

product-750-469

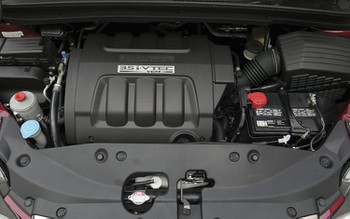

Automotive Engine Cover Application (21% Weight Reduction)
21% weight reduction vs aluminum
Vibration resistance: 18.3Hz natural frequency
Cost reduction: €18.50/vehicle

Structural Components

Tensile strength: 142MPa (+18% vs PA66-GF30)
Impact strength: 320 J/m (3× virgin PP)
HDT @1.8MPa: 152°C

Performance Data Sheet

Property	PP LGF40	PA66-GF30	Test Method
Tensile Strength	142 MPa	120 MPa	ISO 527
Flexural Modulus	6.87 GPa	5.2 GPa	ISO 178
Impact Strength	320 J/m	95 J/m	ISO 179
Density	1.22 g/cm³	1.36 g/cm³	ISO 1183
Thermal Expansion	3.1×10⁻⁵/°C	5.8×10⁻⁵/°C	ISO 11359
