Name: PP GF40 NG04H(LGF40) Long Glass Fiber PP Suppliers|Manufacturer LFT-G
Brand: LFT-G
SKU: 226580108

Key Specifications of PP-LGF40

Engineered for high-load components, LFT-G^® PP-LGF40 provides verified mechanical enhancements, offering an exceptional balance of high stiffness and dynamic impact strength.

9,200 MPa

Tensile Modulus

188 MPa

Flexural Strength

38 kJ/m²

Charpy Notched Impact

158°C

HDT @ 1.8 MPa

● Continuous 3D Fiber Matrix ● Metal-to-Plastic Lightweighting ● Low Isotropic Shrinkage

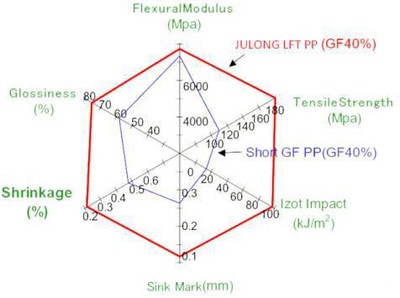

PP LGF40 vs. Standard PP GF40 (Short Fiber)

Standard short-fiber compounds use broken glass fragments (usually <1.0 mm) that fracture easily. LFT-G^® PP-LGF40 preserves glass fibers (typically 5–25 mm in the pellet, remaining several millimeters long after molding) embedded in a polypropylene matrix. The long fibers form an internal 3D entangled network skeleton during injection molding, providing superior impact resistance and fatigue resistance compared to short glass fiber alternatives.

Standard Short PP GF40

Average internal fiber length: less than 1.0 mm.
Fractures easily under dynamic impact loads.
High molding shrinkage causes structural warping.

LFT-G^® PP LGF40 (Long Fiber)

Continuous fiber network (5-25mm pellet).
2.5x higher impact resistance and energy absorption.
Low shrinkage prevents structural warp.

Typical Material Properties (LFT-PP-LGF40)

The typical properties detailed below represent standard metrics recorded inside the LFT-G^® testing facility under Dry-As-Molded (DAM) conditions. Testing complies strictly with verified ISO and ASTM standards to ensure absolute technical data verification.

Property	Test Standard	Value (DAM State)
Tensile Modulus	ISO 527	9,200 MPa
Tensile Strength	ISO 527	138 MPa
Flexural Strength	ISO 178	189 MPa
Charpy Notched Impact (23°C)	ISO 179	38 kJ/m²

Property	Test Standard	Value
Density	ISO 1183	1.21 g/cm³
HDT (1.80 MPa)	ISO 75	158 °C
Mold Shrinkage	ISO 294-4	0.15 - 0.25 %

Download LFT-G^® PP LGF40 Technical Datasheet (PDF)

Processing Guidelines – Injection Molding

LFT-G PP LGF40 Injection Molding Processing Guide Parameters

Pre-drying

90–100°C / 2–4h
Moisture < 0.1%

Injection

Melt 210–250°C
Mold 38–69°C Pressure 80–120 MPa

Frequently Asked Questions (FAQ)

Q: Are you a direct manufacturer or broker?

A: We are an ISO 9001:2015 certified direct manufacturer of continuous long fiber reinforced thermoplastics (LFT). Our pultrusion facility in China controls quality from polymerization to final compound pellets.

Q: Can you customize the fiber loading of PP LGF?

A: Yes. We customize long glass fiber loadings from 20% to 70%. Additionally, we compound properties for UV stabilization, UL94 V0 flame retardancy, and color-matching to pantone.

Q: What is the MOQ for custom LFT-G orders?

A: Our standard production minimum is 1,000 kg. Smaller quantities are available for structural testing and engineering verification cycles.
