Industrial Drive Supremacy: Conquering Cyclic Stress and Severe Wear
In heavy industrial machinery and power transmission systems, structural components are subjected to relentless cyclic vibrations, continuous high-torque shear, and elevated operating temperatures. Standard unfilled polymers and short-fiber plastics quickly fail due to fatigue cracking or thermal creep. The LFT-G® PA66 LGF40 Granules deliver the decisive structural upgrade required to replace traditional cast iron, bronze, and sintered alloys. By compounding 40% continuous long glass fibers into an advanced Nylon 66 resin matrix, the material forms an internal structural skeleton during injection molding. This skeletal architecture yields an immense 13,588 MPa tensile modulus, an impressive 320 MPa flexural strength, and a continuous heat deflection temperature of 254°C. Crucially, the long glass fiber network dissipates dynamic stress waves throughout the entire component, providing a 35 KJ/m² Notched Charpy impact resistance that effectively prevents catastrophic brittle fractures under sudden overload conditions.
Explore the mechanics of continuous long fiber reinforcement →
Material Identification & Classifications
| Property Key | Specification Value |
|---|---|
| Product Grade Code | LFT-G® PA66-LGF40-NG04 |
| Polymer Matrix | Polyamide 66 (PA66 / Nylon 66) |
| Reinforcement Architecture | 40% Continuous Long Glass Fiber (LGF) |
| Color Availability | Black and Natural (Customizable on request) |

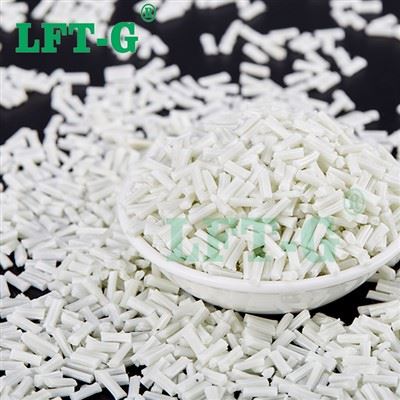

| Pellet Physical Form | Injection Molding Granules (10-12mm length) |
| Compliance Testing Standards | Strictly ISO and ASTM Laboratory Certified |
| Flammability Classification | HB @ 1.5mm (UL-94 Standard) |
| Primary Engineering Target | Industrial planetary gears, Substation brackets, Harvester arms |
Typical Properties of PA66 LGF40 NG04
| Property | Standard | Value |
|---|---|---|
| Specific Gravity | ASTM D-792 | 1.46 g/cm³ |
| Molding Shrinkage | ASTM D-955 | 0.1% - 0.3% |
| Tensile Strength | ISO 527 | 215 MPa |
| Tensile Modulus | ISO 527 | 13,588 MPa |
| Property | Standard | Value |
|---|---|---|
| Flexural Strength | ASTM D-790 | 320 MPa |
| Flexural Modulus | ASTM D-790 | 10,115 MPa |
| Notched Charpy Impact | ISO 180 | 35 kJ/m² |
| HDT (1.8 MPa) | ISO 75-2 | 254 °C |
Values reflect typical dry-as-molded test specimens. Mechanical verification strictly adheres to global ISO and ASTM protocols to ensure dependable data transfer into CAD and CAE structural modeling systems.
Processing Parameters
Pre-Drying
85–105°C / 3-5 hrs
Moisture Content < 0.05%
Melt Temp
267–299°C
Injection Pressure: 70-125 MPa
Mold Temp
75–90°C
For dense fiber entanglement
Heavy Industrial & Infrastructure Applications

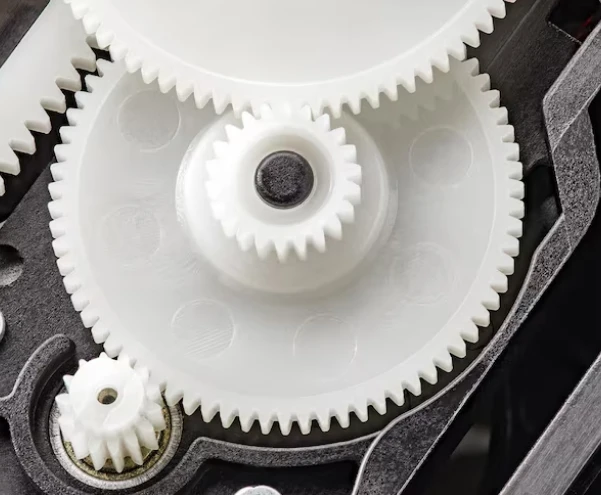

Industrial High-Torque Planetary & Helical Gears
In high-speed textile machinery, automated packaging lines, and industrial conveyor drives, traditional bronze or sintered steel gears generate severe mechanical noise and require continuous oil lubrication. PA66 LGF40 Granules replace heavy metal gears with ease. The 40% continuous long glass fiber network reinforces individual gear tooth roots against shear failure, while the low-friction nylon surface allows dry-running operation and attenuates gear mesh decibel levels by up to 10 dB.
High-Voltage Substation Insulating Tension Clamps
Outdoor electric transmission cross-arms and tension clamps must support tons of hanging power cable weight while enduring winter ice loading and storm winds. Traditional cast steel clamps corrode and lack dielectric insulation. PA66 LGF40 delivers extreme tensile creep resistance, while its low water absorption eliminates electrical surface tracking in pouring rain. Its 254°C heat deflection temperature provides an essential safety margin against electrical short-circuit thermal flashovers.

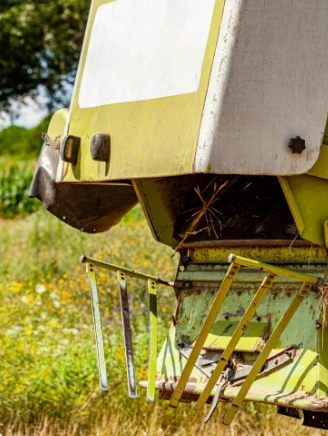

Agricultural Harvester Thresher Rocker Arms
Commercial agricultural combine harvesters operate in abrasive dust, mud slurries, and face sudden impact when foreign debris enters the threshing drum. Standard short-fiber brackets snap instantaneously upon rock impingement, while cast iron parts add unnecessary weight that compacts soil. PA66 LGF40 combines a 13,588 MPa stiffness that prevents arm deflection with four times the sliding abrasion resistance of short-fiber composites.
Explore the PA66 LGF Series
PA66 LGF30
Offers increased melt flowability for large cooling chambers and automotive radiator water tanks with an 11,000+ MPa modulus.
View PA66 LGF30 →PA66 LGF40
The high-torque mechanical workhorse. Unlocks 13,588 MPa stiffness and 254°C heat endurance for heavy-duty industrial transmission components.
PA66 LGF50
Pushes fiber loading to 50% for maximum structural modulus, explicitly designed to replace structural steel in extreme chassis members.
View PA66 LGF50 →Request Technical Trial Sample
Are you designing heavy-duty industrial planetary gears, power grid substation clamps, or rugged agricultural machinery brackets that demand 13,500+ MPa stiffness and 254°C thermal stability? Contact the LFT-G materials team today to request a 25KG PA66 LGF40 Granules trial sample.
