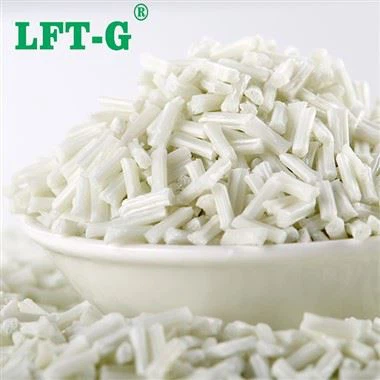

GF30 Nylon 12 Plastic Pellet
LGF30 PA12 is a high-performance long-fiber reinforced PA12 composite material. It is made of polyamide 12 (Polyamide 12) as the matrix and reinforced with 30% long glass fibers, which significantly improves the mechanical properties, structural strength, and durability of the material. As a typical PA12 engineering plastic material, LGF30 PA12 maintains the excellent properties of nylon 12 while forming a stable internal structural framework through the long-fiber reinforcement technology, thereby enabling the material to have higher load-bearing capacity and long-term stability.
Know to LGF30 PA12 Material
Among the various PA12 composite materials, the long glass fiber reinforcement technology has significant advantages over the traditional short glass fiber materials. The long glass fibers can form a continuous stress-bearing network within the material, allowing stress to be distributed more evenly within the material, thereby significantly enhancing the overall strength and fatigue resistance of the material. Therefore, the LGF30 PA12 long-fiber-reinforced nylon 12 material performs particularly well in structural applications that require high loads or long-term mechanical stress.
Meanwhile, polyamide 12 itself has a low moisture absorption rate, excellent chemical resistance, and stable processing properties. When these characteristics are combined with the long glass fiber reinforced structure, the long glass fiber reinforced PA12 engineering plastic can maintain stable performance under complex conditions. This makes LGF30 PA12 a widely used high-strength PA12 engineering plastic material in numerous high-end structural applications.
With the increasing demands for lightweight, high strength and durability in modern manufacturing, LGF30 PA12 composite material has become one of the important alternatives to traditional metal materials and common engineering plastics.
Material performance characteristics
As a high-performance long-fiber-reinforced PA12 engineering plastic, LGF30 PA12 (30% long glass fiber reinfoced polyamide 12) plastic pellet demonstrates balanced and outstanding comprehensive performance in terms of mechanical properties, environmental stability, and structural durability.
The LGF30 PA12 composite material exhibits excellent strength and rigidity in terms of mechanical properties.
Impact resistance: The long-fiber structure can effectively absorb and disperse impact energy, ensuring that the material maintains good structural integrity even when subjected to instantaneous impact or vibration.
In terms of moisture absorption, polyamide 12 has a lower water absorption rate compared to nylon 6 or nylon 66.
This enables PA12 composite materials to maintain stable dimensional accuracy even in humid environments, demonstrating excellent dimensional stability.
Chemical resistance: LGF30 PA12 engineering plastic material is capable of withstanding various chemical agents commonly found in industrial environments, such as lubricants, fuels, hydraulic oils, and a wide range of industrial solvents.
In terms of lightweighting, LGF30 PA12 composite engineering plastic boasts an outstanding strength-to-weight ratio. Reduce weight while maintaining structural strength
Overall, the LGF30 PA12 long-fiber reinforced nylon 12 composite material achieves a good balance of performance in terms of strength, toughness, dimensional stability, chemical resistance, and lightweight properties.
What is LGF30 Nylon 12 Good For?
-
Industrial equipment
LGF30 PA12 engineering plastic is commonly used in
Mechanical housings
Structural supports
Pump body components
Structural parts of conveying equipment.
These applications usually require materials that can withstand long-term mechanical stress, and LGF30 PA12 engineering plastic material has obvious advantages in fatigue resistance performance. -
Automotive industr
Long glass fiber reinforced PA12 materials are commonly used for structural components and load-bearing parts, such as
Seat frame
Front module structural components
Battery support structure
Installation bracket
Due to the high strength and excellent chemical resistance of LGF30 PA12 composite materials, they can maintain stable performance in complex automotive environments. -
Power tools
The electric tool industry also extensively uses long glass fiber reinforced PA12 composite materials.
Tool housings
Internal structural frames
Gearbox support components
All these products need to have high rigidity and impact resistance. The LGF30 PA12 material can ensure structural strength while reducing the weight of the products.
As a high-performance long glass fiber reinforced PA12 engineering plastic material, LGF30 PA12 combines the excellent chemical resistance, low moisture absorption rate and stable processing performance of polyamide 12 with the long glass fiber reinforced structure, thereby significantly enhancing the mechanical strength, impact toughness and dimensional stability of the material.
This PA12 long-fiber reinforced composite material not only meets the demands of modern industry for high-strength structural materials, but also has excellent lightweighting advantages. Therefore, LGF30 PA12 composite engineering plastic has become an important material choice for automotive structural components, industrial equipment, and high-performance mechanical parts.
Material customization
To meet the diverse application requirements, the LGF30 PA12 composite material can also undergo various functionalization modifications.
Flame-retardant type
Ultraviolet-resistant type
High-temperature resistant type
Color and length customization
FAQ
Q: Can LGF30 PA12 replace metals?
A: In many structural applications, LGF30 PA12 composite material can achieve lightweight substitution while maintaining excellent structural strength.
Q: In which environments is this PA12 composite material suitable?
A: PA12 long glass fiber reinforced material is suitable for industrial environments that are damp, contaminated with oil, and exposed to chemical media.
Q: How can the fiber breakage be reduced during the injection molding process of LGF30 PA12?
A: When processing LGF30 PA12 engineering plastic material, a low shear screw design, optimized injection speed and avoidance of excessive back pressure should be adopted to maximize the retention of fiber length, thereby ensuring the mechanical properties of the long glass fiber reinforced PA12 material.
