40% LCF PBT Composite
What is LCF40 PBT?
The LCF40 PBT consists of two parts. It is a high-performance thermoplastic composite material with a PBT (polybutylene terephthalate) matrix and reinforced by 40% long carbon fibers.
PBT resin offers:
- Excellent dimensional stability
- Low moisture absorption rate
- Good chemical resistance
- Excellent electrical insulation performance
- Good injection molding performance
Long carbon fiber provides:
- High strength enhancement effect
- High rigidity supporting capability
- Excellent fatigue resistance performance
- Lower structural deformation
- Lightweight design capability
The combination of the two enables the LCF40 PBT to possess both the processing advantages of engineering plastics and the structural properties of composite materials.

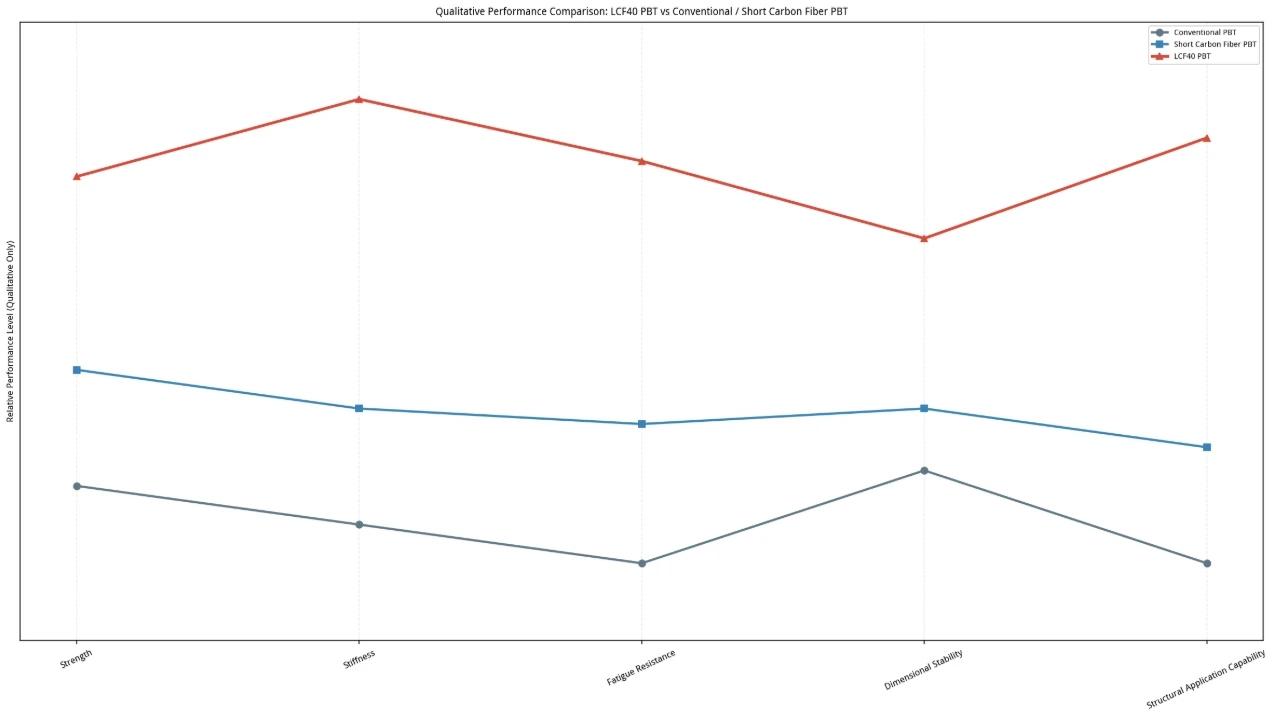

LCF40 PBT Vs. Other Pellet
The core advantage of LCF40 PBT lies in its ability to maintain the long carbon fiber structure.
During the injection molding process, the long carbon fibers can form continuous reinforcing paths, enabling the external loads to be more effectively transferred throughout the entire material system.
The regular PBT has more limitations, while the short carbon fiber PBT fibers have a shorter length and are prone to breaking during the processing.
LCF40 PBT: Key Features
- High Rigidity: Reduces deformation under force, enhances structural support capacity, and improves dimensional accuracy.
- Excellent strength-to-weight ratio: lighter, stronger, and better suited for complex structural designs
- Outstanding fatigue resistance: Strong ability to withstand repeated stress, reduces the risk of fatigue fracture, and extends product lifespan.
- Excellent dimensional stability: lower thermal expansion, lower warpage risk, better dimensional retention capability, higher molding accuracy
- Excellent environmental resistance: The PBT matrix endows the material with excellent adaptability to the environment.
What is LCF40 PBT Used For?
LCF40 PBT lightweight structural composite material, designed for metal substitution applications, featuring high rigidity, high strength, lightweight, fatigue resistance, and injection molding efficiency. Suitable for high-performance application fields such as automobiles, new energy vehicles, industrial equipment, and electronic structural components.
FAQ
Q: What are the advantages of LCF40 PBT compared to ordinary carbon fiber PBT?
A: The main difference lies in the length of the fibers.
The LCF40 PBT retains a longer carbon fiber structure, which can form a continuous reinforcement network. Therefore, it has more advantages in terms of strength, rigidity and fatigue performance.
Q: Can LCF40 PBT replace metals?
A: For some structural components, LCF40 PBT can replace metal materials such as aluminum, achieving lightweighting and structural optimization.
Q: Can LCF40 PBT be customized?
A: Sure. It can be adjusted according to customer requirements: the proportion of carbon fiber, flame retardant performance, length, and so on.
